WL High Temperature Circuit Board Soldering Jig Fixture for Cell Phone Motherboard PCB Fixture Holder

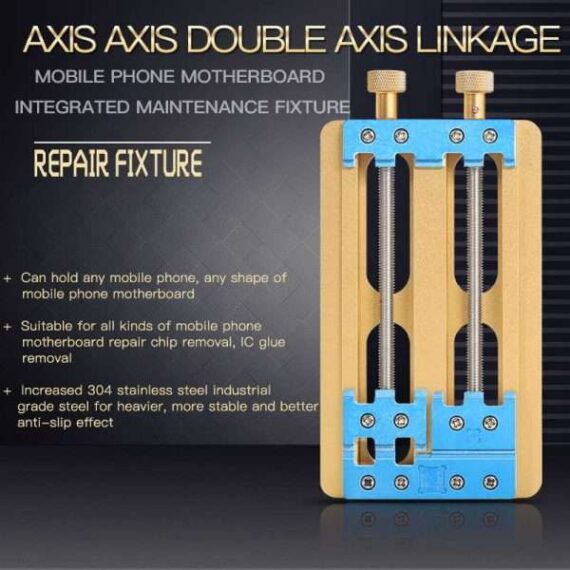

WL Double Shaft Linkage High-Temperature Motherboard PCB Circuit Board Fixture Holder
- Mobile phone Motherboard Repair Universal maintenance fixture holder, rotary fixed design, no rebound, fixed firmly! The design has three adjustable distances.
- Prevent clamps from moving during use, special anti-skid pad, in order to allow heating. Let the hot air can be discharged more efficiently. Add heat sink to the bottom of the clamp. Rotary shaft locks the motherboard or IC more efficiently, Fixed well without a rebound.

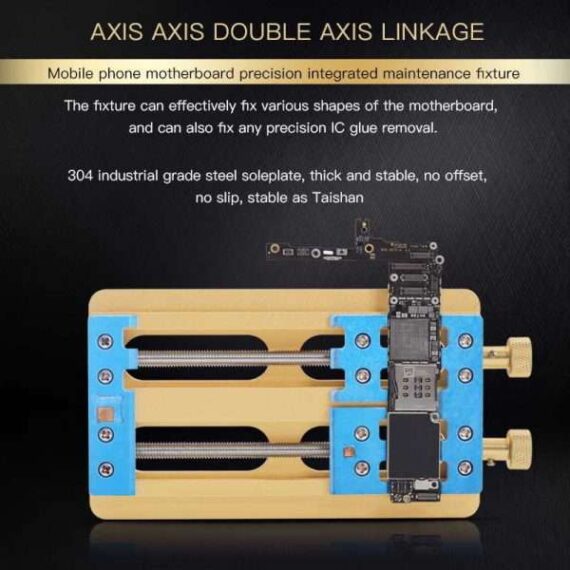

- PCB Fixture also supports IC type fixtures fixed for the removal of back glue, the clamp is designed to bear the force of IC beam, which can hold up the empty parts of IC well and avoid the IC breaking when removing black glue.
- The PCB fixture can be adjusted at a different distance from the high, middle and low levels. It’s necessary to loosen the two screw at the bottom, move the fixing plate to the appropriate gear position, and then tighten the bottom screws to lock it.
