Mechanic MC75T-B1 Trinocular Microscope

Rs.18,500.0Rs.19,999.0 (-7%)

In stock

Mechanic MC75T 7-45X Trinocular Stereo Zoom Microscope  DX-230 2300W pixels 1080P  HD camera With i-Matx Base

wwsSanjeev Kumar / Pre-sale QuestionsNeed Help? Contact Us via WhatsApp
SKU: GB-7U7HUXI8 Categories: ,

Mechanic MC75T 7-45X Trinocular Stereo Zoom Microscope  DX-230 2300W pixels 1080P  HD camera With i-Matx Base

1





Microscope Feature:

  • 7X-45X zoom magnification power with crisp sharp images
  • Widefield of view
  • Sturdy all-metal pillar stand
  • High resolution with great flatness and contrast, giving sharp and clear images
  • Sharp stereo erect images with a wide field of view
  • Crystal clear original true color microscope images
  • Large working distance
  • Sturdy all-metal table stand
  • Accurate alignment reduces eye strain for longer periods of viewing
  • Full optical glass elements
  • Precise ground glass lenses
  • Full metal chrome-plated mechanical components
  • Adjustable interpupillary distance
  • Rubber eye-guards included
  • Adjustable bracket, lifting range:50mm; easy to operate
  • Binocular Head, 45° inclined, Interpupillary Adjustment 54-76mm

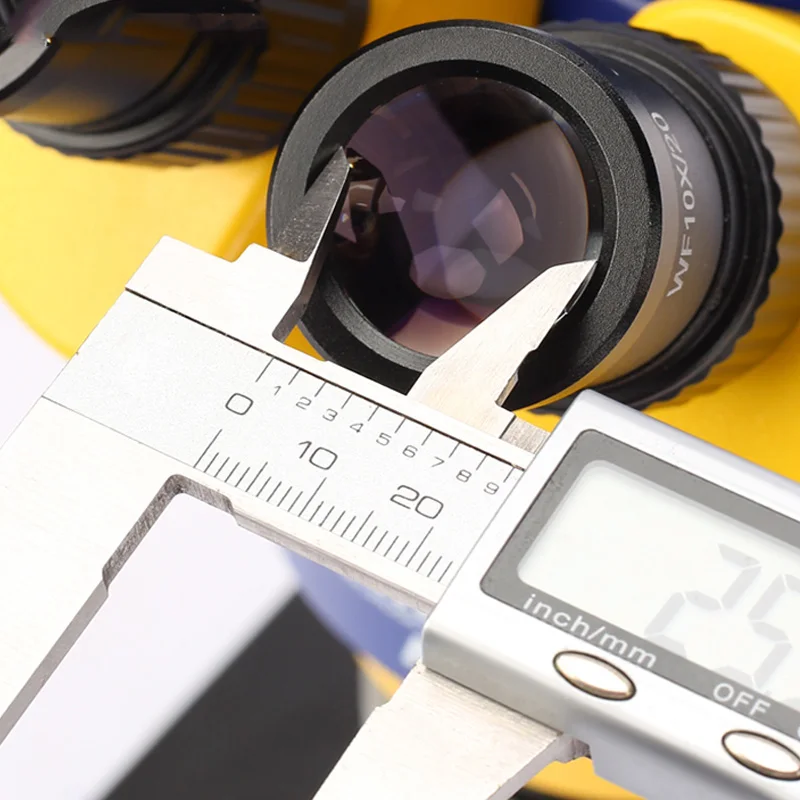

  • Eyepiece: WF10X/20mm High Eyepoint Eyepiece
  • Effective distance: 100mm, the use of the auxiliary objective lens can be extended 26mm-287mm
  • Auxiliary objective lens: 0.3X/287mm, 0.5X/165mm, 0.7X/120mm, 1.5X/45mm, 2X/30mm (not include)
  • Zoom Range:0.7X-4.5X
  • Magnification:7X-45X67

Camera Parameter:

  • Dimensions: approximately 7.3×7.3×3.0 cm
  • Image sensor: 1 / 2.3 inches
  • Effective pixels: 23 megapixels
  • Pixel size: 1.35 * 1.35um
  • Frame rate: 30 fps
  • Resolution of the HDMI image: 1920×1080 60FPS
  • Video format: MP4, MOV (for TF card)
  • USB video resolution: 1920×1080 @ 30FPS
  • White balance: Auto / manual
  • TF card interface: up to 64G
  • Digital enlargement: 8 times digital zoom
  • USB interface: standard USB 2.0 interface
  • Output interface: HDMI(Type A), USB(Type B), TF Card
  • Photo resolution: 23 Mega Pixal2300W pixel
  • Video resolution: 2K@30frame, 1080P@60frame
  • HDMI output: Progressive 1920/1080 60frame can be output simultaneously with USB
  • HDMI output ratio: Support 4:3 16:9 16:10 screen to keep the image not be deformed
  • USB 2.0 output(free drive): 1920*1080@30 1280*720@30 640*480@30 can be output simultaneously with USB
  • White balance: One button while balance/manual/automatic RGB individually adjustable
  • Exposure: Manual/automatic exposure value adjustable
  • Sharpness, Contrast, Saturation: Support adjustable
  • Black and white/negative: Support
  • Mirror: Horizontal vertical mirror
  • Language: Chinese/English
  • Digital Zoom: Support
  • Remote control: Support/Remote video recording, the screen does not shake
  • Input voltage: DC 12V(support 5-9V) 55-21 large interface
  • Power consumption: Maximum 0.15W (12V 0.12A)2Features:
  • 420mm*320mm
  • Real high temperature insulation pad Screw positioning area to prevent the screw from losing work Aluminum alloy base, strong heat dissipation Anti-corrosion, no deformation, anti-static The removing tool slot is composed of multiple sets of hollow cylinders, multiple sets of concave convex sets The multi function slot The common maintenance supplies placing slot can be oval, round or rectangular shape. The slot is engraved with the size and product name, which enhances its own flexibility. 35

Additional information

Weight 2 g
Be the first to review “Mechanic MC75T-B1 Trinocular Microscope”

Your email address will not be published. Required fields are marked *

Reviews

There are no reviews yet.
