Description

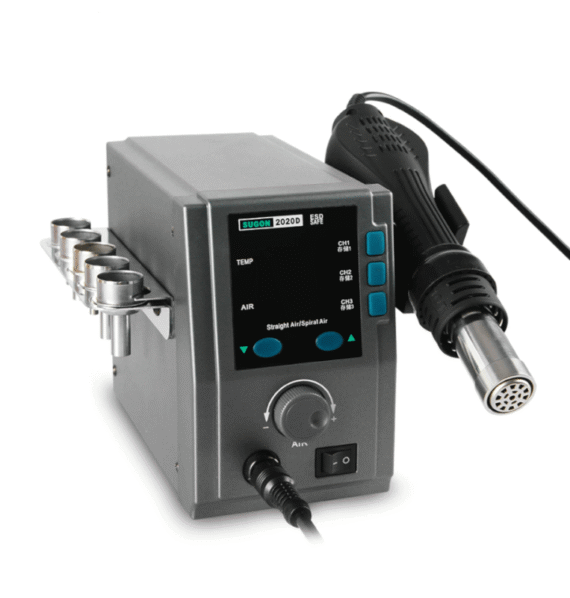

SUGON 2020D 750W/ heat gun lead-free hot air soldering station microcomputer temperature Rework Station+6 Welding head
Feature:
- Increase to the set temperature in 4 seconds.
- It has a variety of protection functions and perfect button functions.
- The convenient real-time operation, through the magnetic switch control, but the hand in the hand and the frame of the handle immediately enter the sleep state.
- With automatic sleep function, parameters can be adjusted in the set sleep state.
- Using a brushless vortex fan, the airflow can be adjusted, the range is large, and it can be suitable for various purposes.
- Real-time ℃/℉ temperature display function.
- With temperature self-calibration function
- Sensors, closed-circuit, the zero passage trigger temperature control of the microcomputer, LED display, big power, heating is rapid, accurate and stable temperature, not affected by the air volume, truly lead-free desoldering.
- Adjustable airflow, air volume big and soft wind, temperature control is convenient, can be suitable for a variety of purposes.
- The handle is equipped with an induction switch, as long as the handshake hands handle, the system can quickly enter the working mode; the Handle is released into the handle frame, the system will enter the standby mode, easy to operate in real-time.
- The system is equipped with an automatic air cooling function, which can prolong the life of the heating element and protect the heat gun.
- Adopts brushless fan very long life, small noise, using high-quality heating element under the same power efficiency can be doubled, and can effectively prolong the working life of the heating element and power saving.
- The machine is equipped with a safety protection function.
- Celsius and Fahrenheit temperature conversion.
- Calibration temperature function
- If the heating element is replaced, the temperature must be recalibrated.
- This machine uses the digital temperature calibration method to correct the incremental key input, easy and quick to adjust
- Power consumption: 700 w
- Airflow type: brushless fan soft wind
- Gas flow rate: 100 liters/minute.
- Temperature control range: 100 ° C – 500 ° C / 212℉-932℉
- Display form: LED digital (resolution 1 ° C)
- Handle component length: 120 cm
- Noise: less than 45 db
Specifications
- Model: 2020D
- Weight: 2.80kg
- Color: Silver Black
-
Power consumption: 700 w
-
Airflow type: brushless fan soft wind
-
Gas flow rate: 100 litres/minute.
-
Temperature control range: 100 ° C – 500 ° C / 212℉-932℉
-
Display form: LED digital (resolution 1 ° C)
-
Handle component length: 120 cm
-
Noise: less than 45 db
- 1 x SUGON 2020D SMD
- 1 x Power Cable
- 1 x Handle
- 2 x Cyclone nozzle (7mm,9mm)
- 3 x Straight nozzle (4mm,7mm,9mm)
- 1 x Manual
Applicable Use :
Desoldering is suitable for a variety of components, such as: SOIC, CHIP, QFP, PLCC, BGA (especially suitable for mobile phone line and row line of desoldering ); Used for heat shrinkable, drying, in addition to the paint, in addition to the glue, thawing, preheating, welding, etc.
