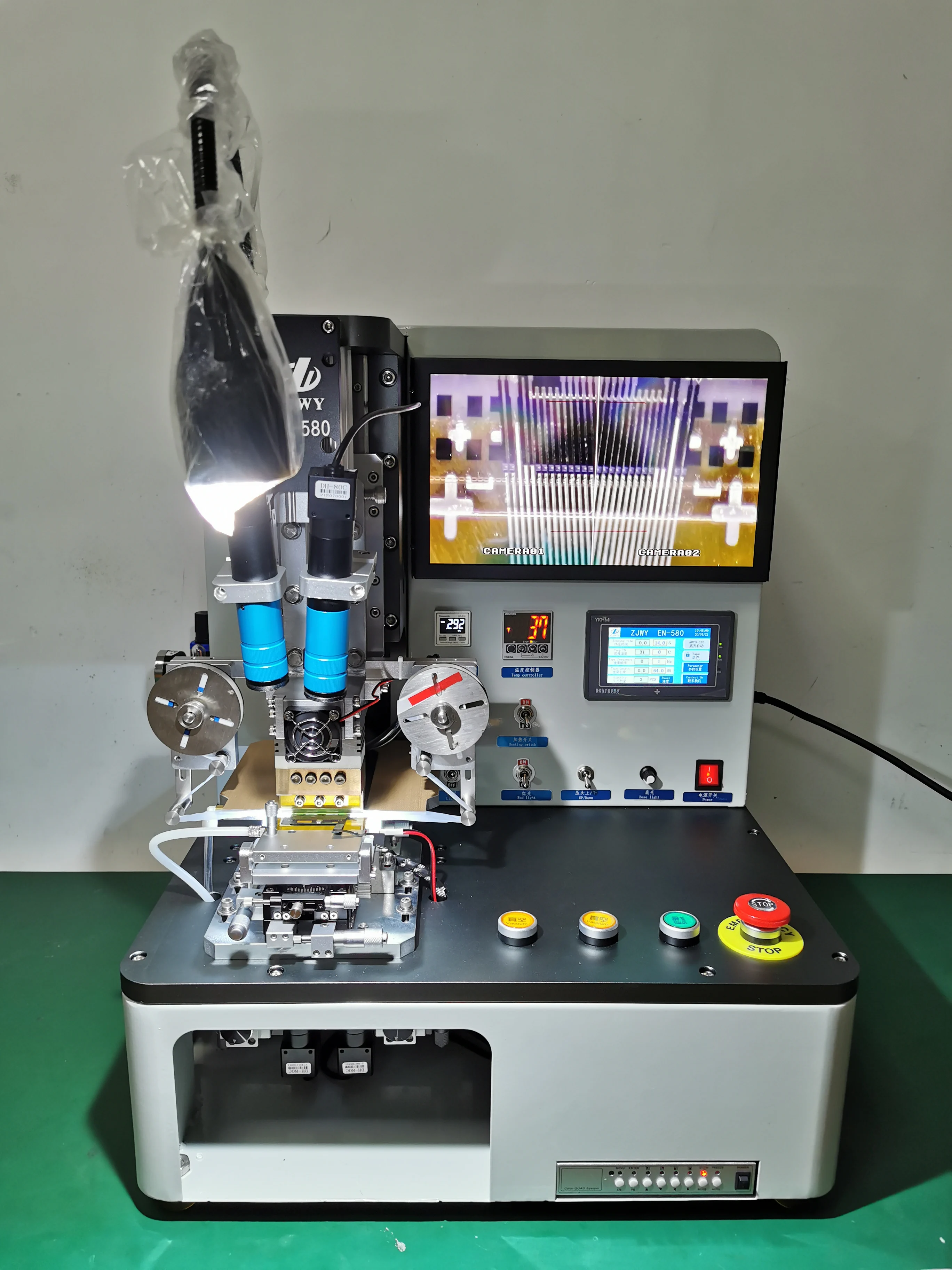

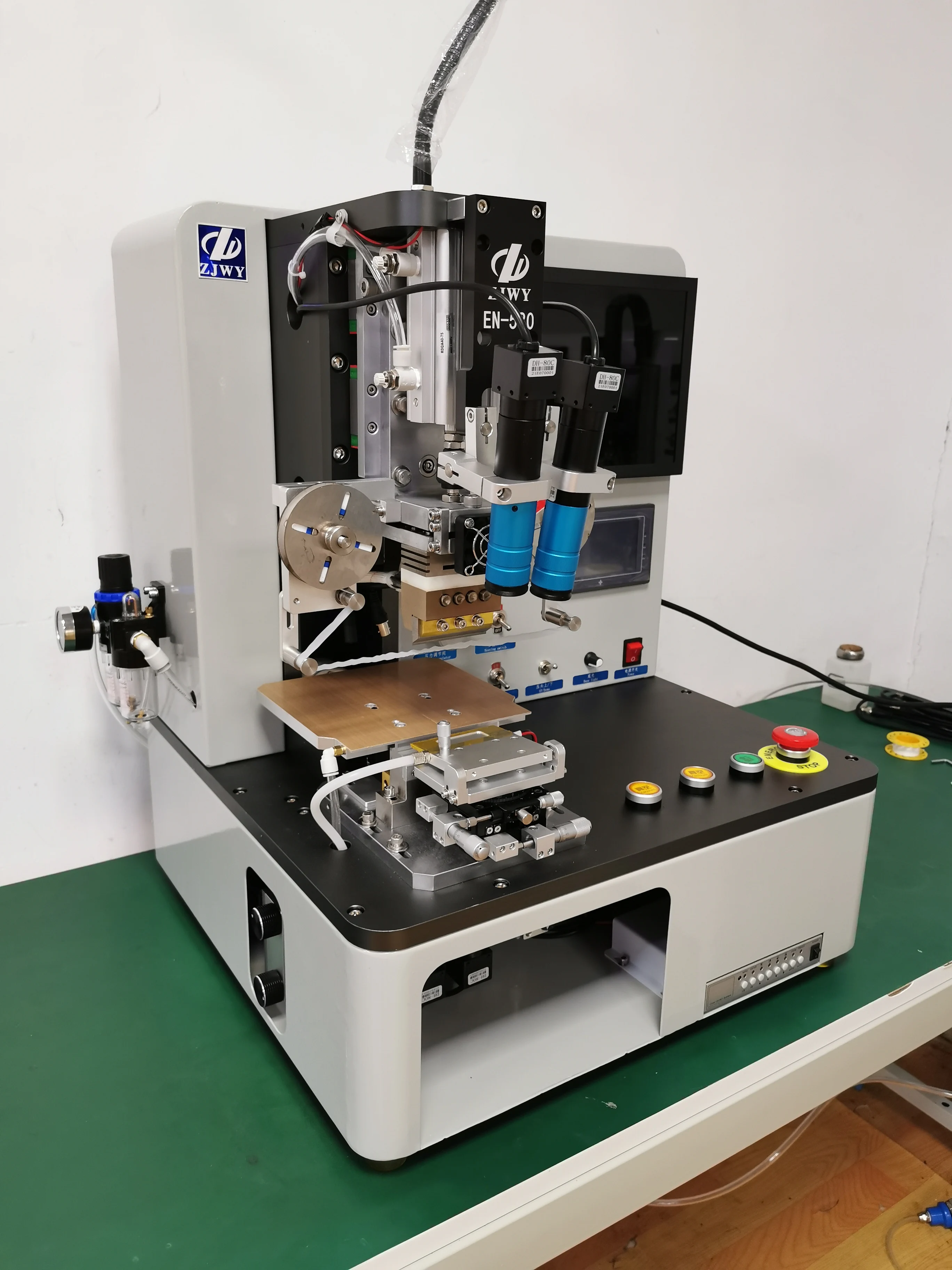

ZJWY New Constant Heating Mobile Phone TAB COG COF COP ACF LCD Repair Green Flex Cable Bonding Machine EN-580
- COF constant temperature bonding machine
- EN-580 is a constant temperature binding machine, which can bind any mobile phone brand model。
Equipment information

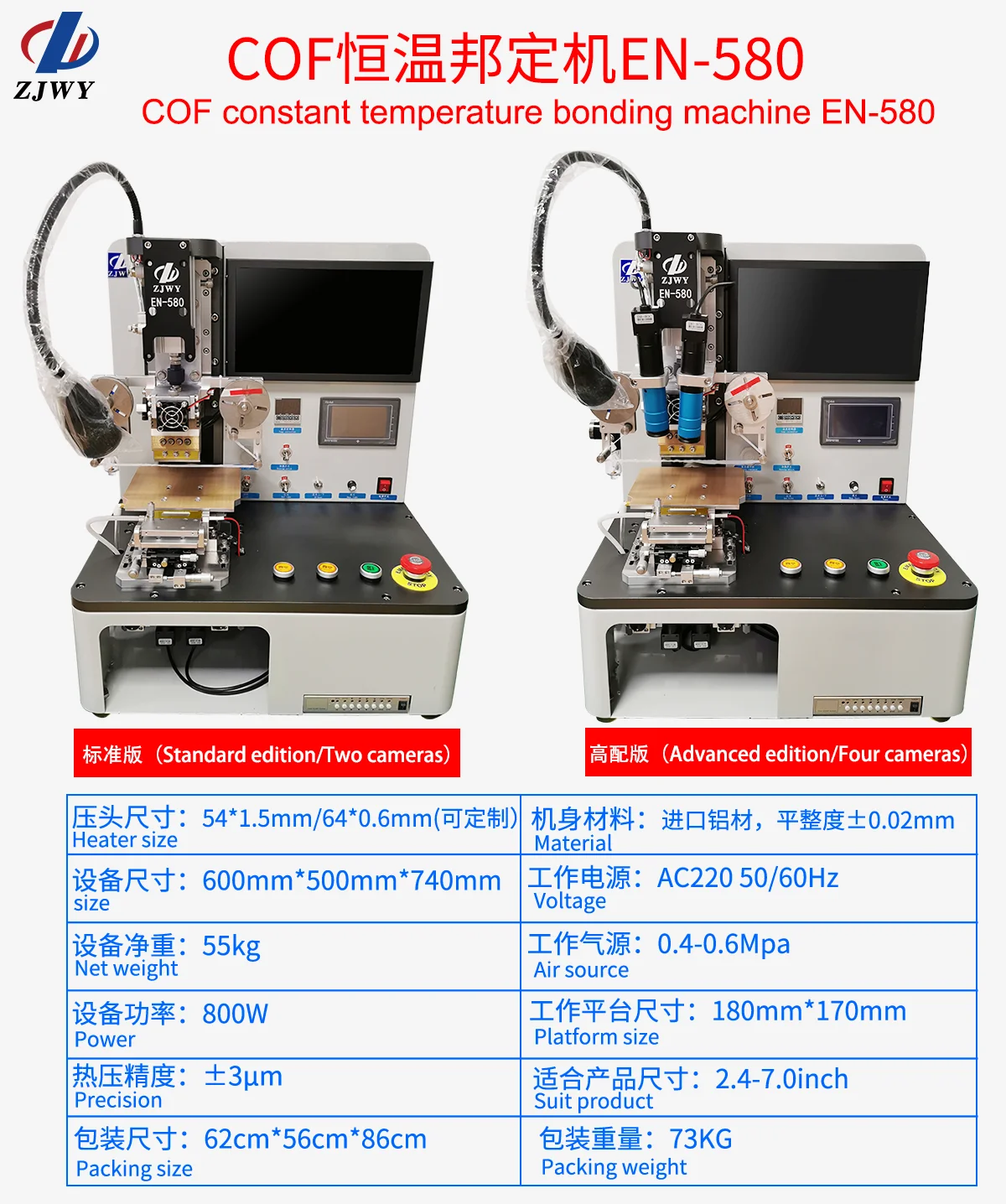

- EN-580 has a standard version and an advanced version. The standard version has two cameras and the advanced version has four cameras

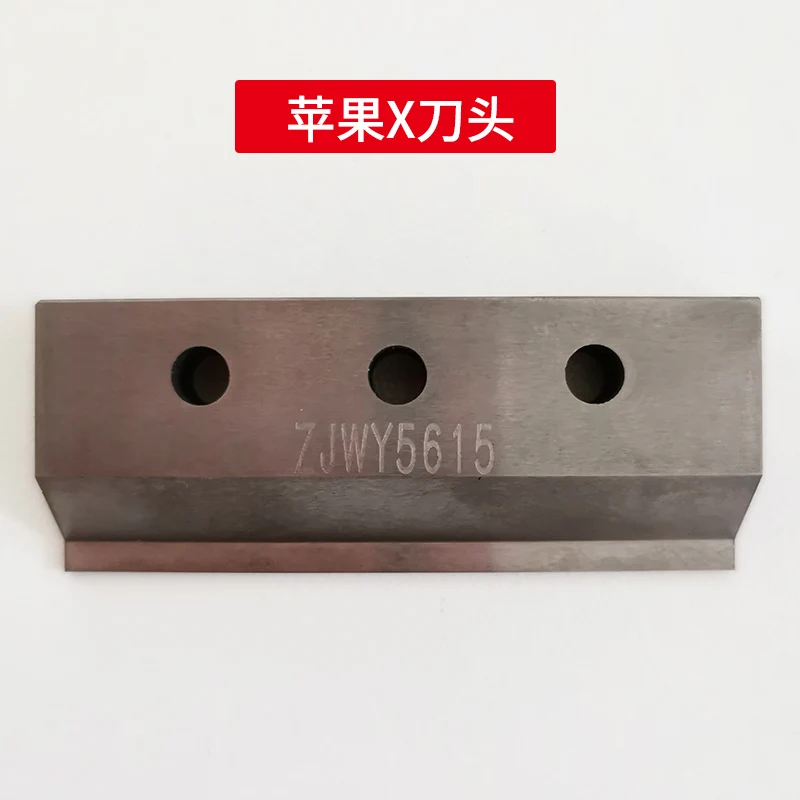

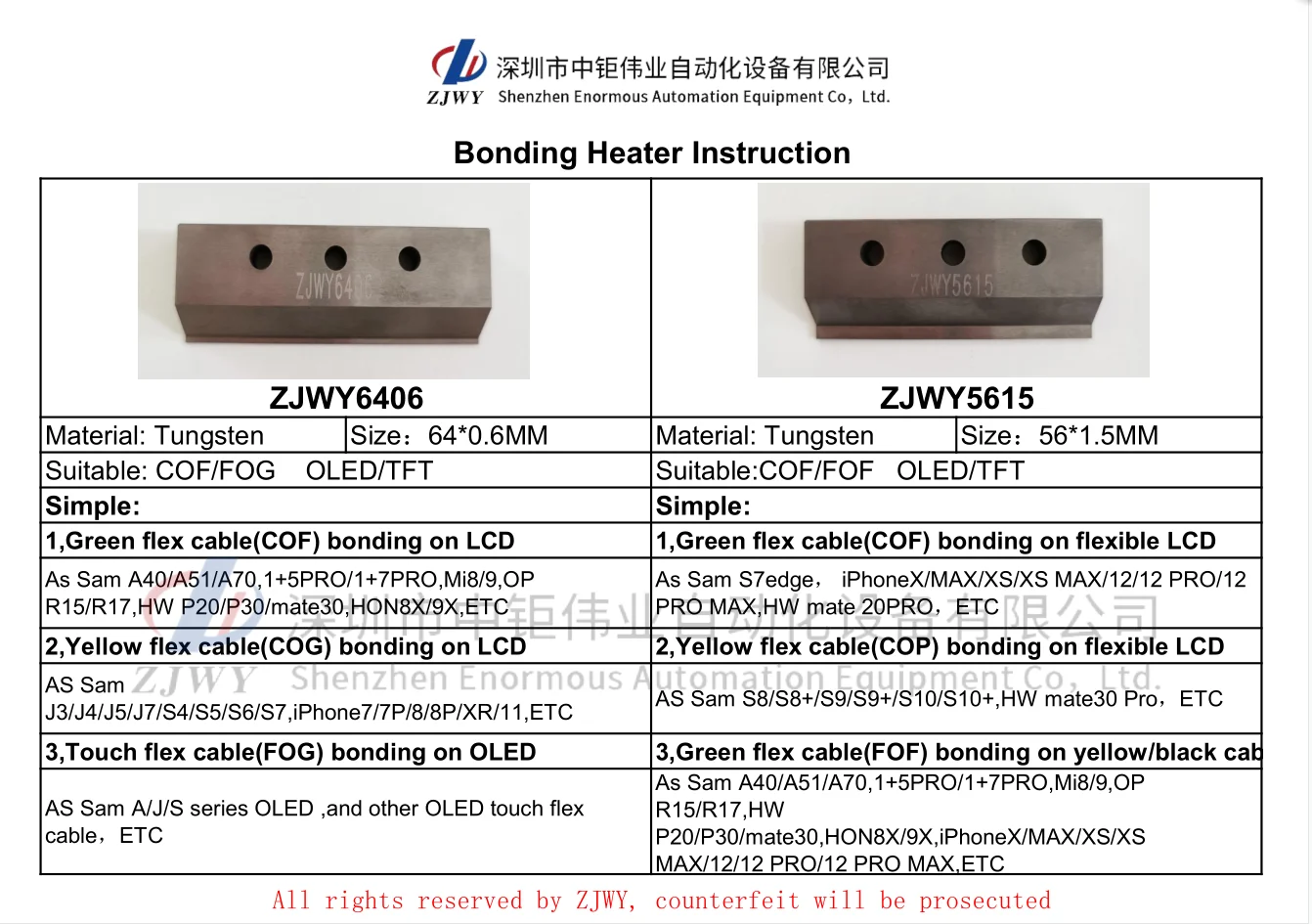

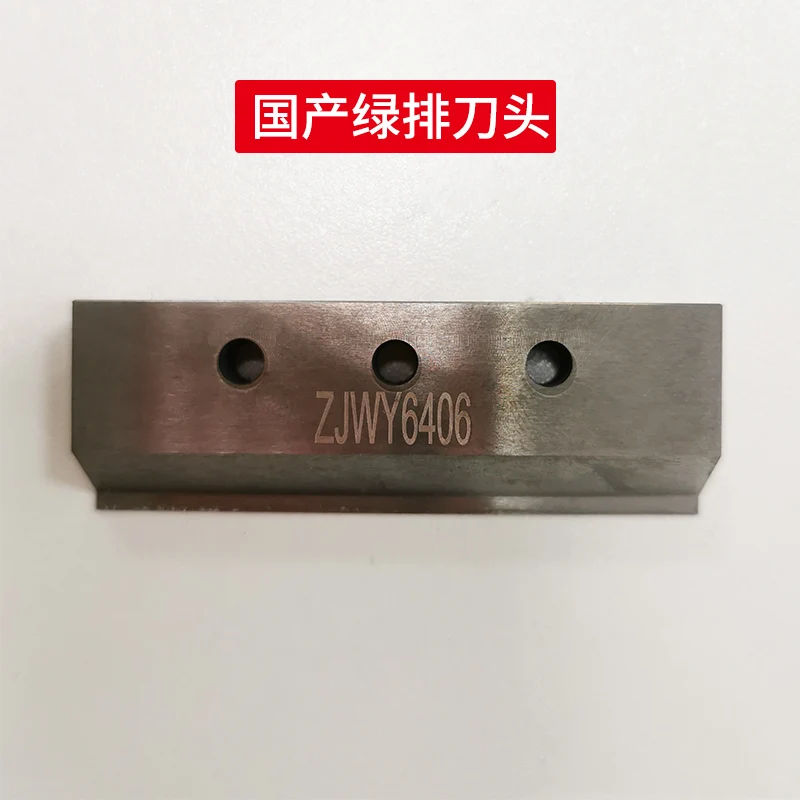

Ordinary cutter head and apple cutter head
The size of ordinary cutter head is 64*0.6, and the size of iPhone cutter head is 56*1.5，To bind all mobile phone models, both cutter heads must be owned.

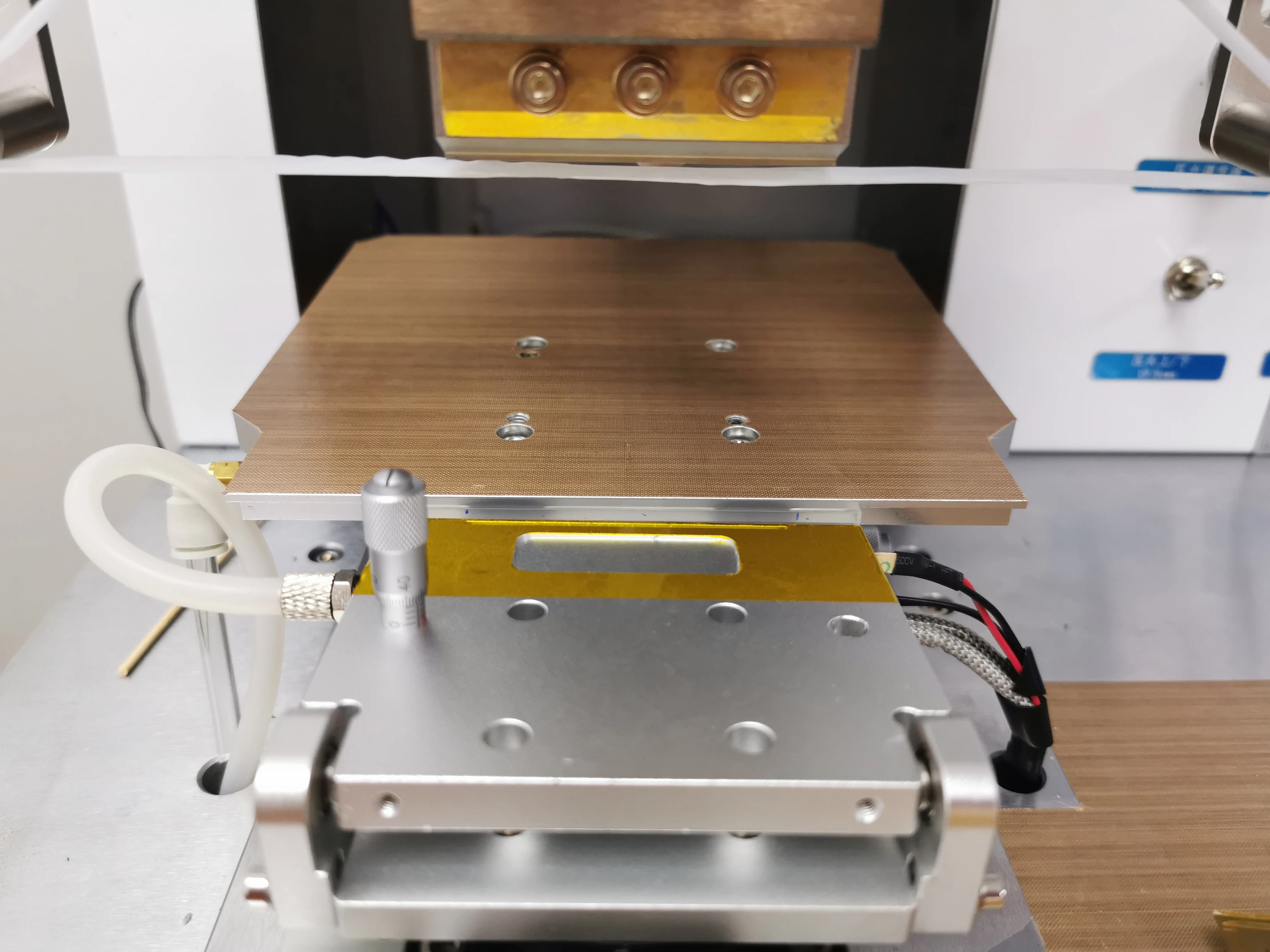

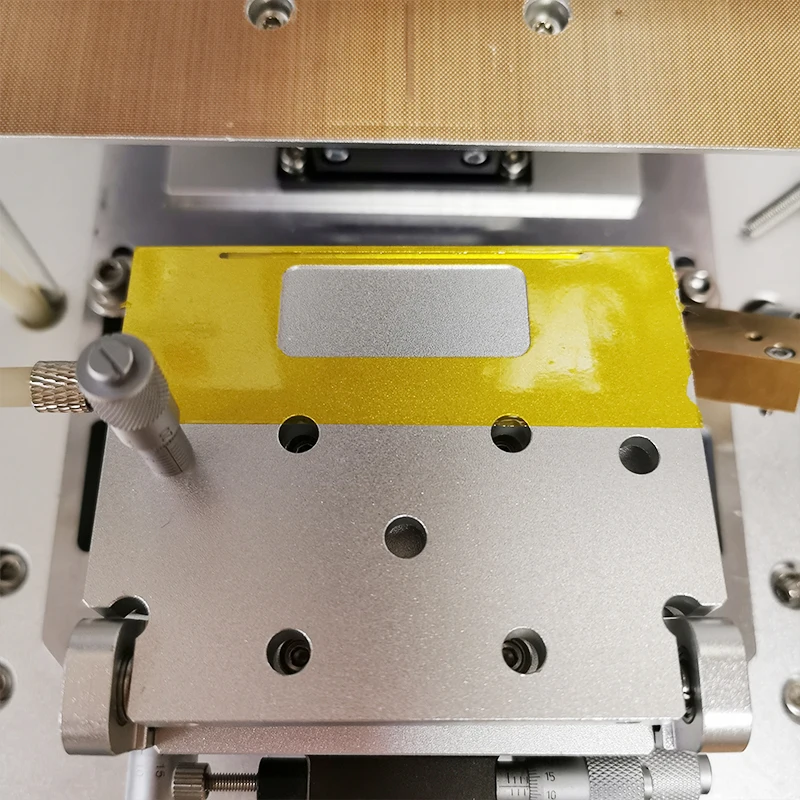

FPC platform
FPC platform is also divided into general platform andiPhone platform

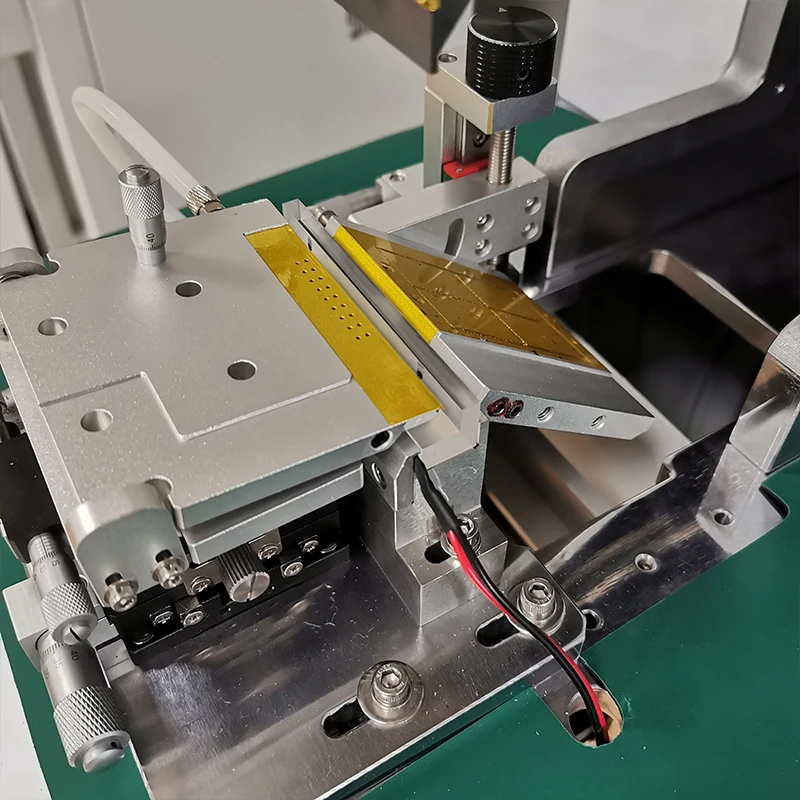

Planar platform and inclined platform
The flat platform is suitable for any mobile phone LCD,Inclined platform is suitable for flexible LCD，The success rate of bonding flexible screens is higher than that of flat platforms。

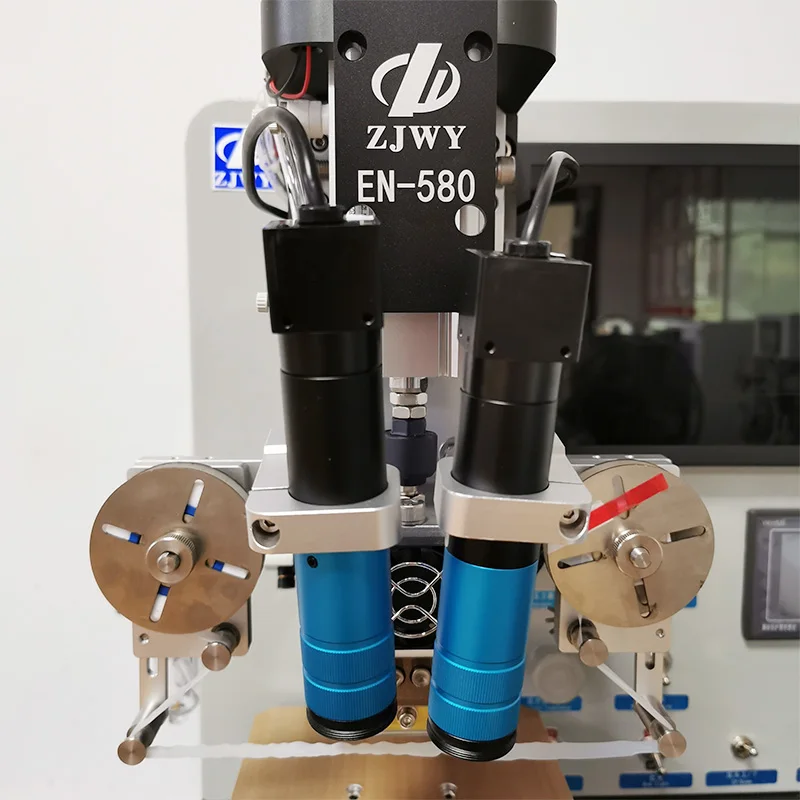

Contraposition effect

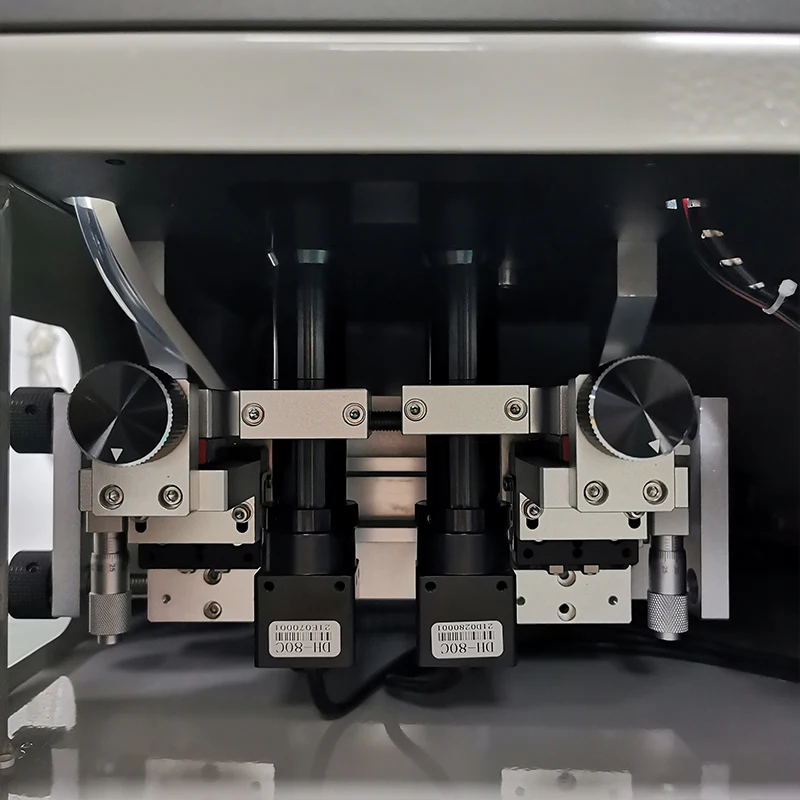

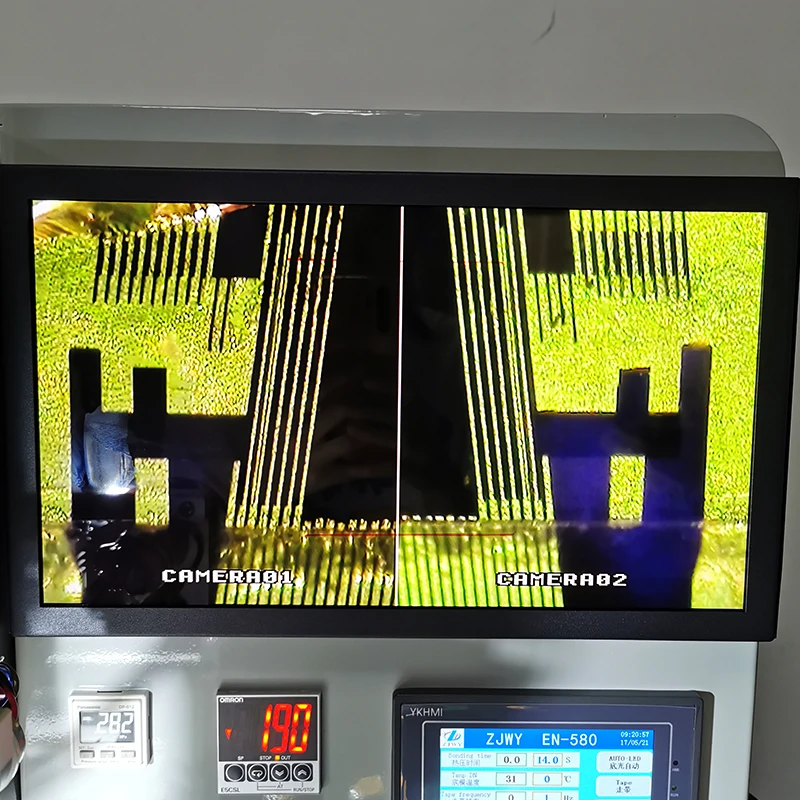

Using a thousand times lens and a 2 megapixel CCD, the alignment lines will be very clear.The advanced version of the machine will also be equipped with a registration camera

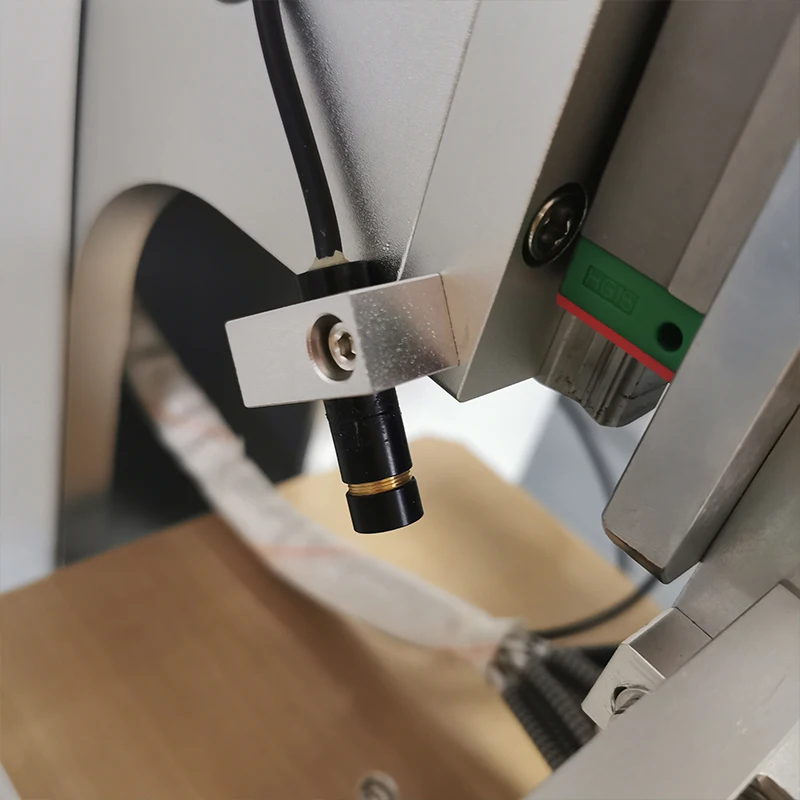

Red positioning
The standard version of the machine can use red light positioning to assist in bonding the touch cable

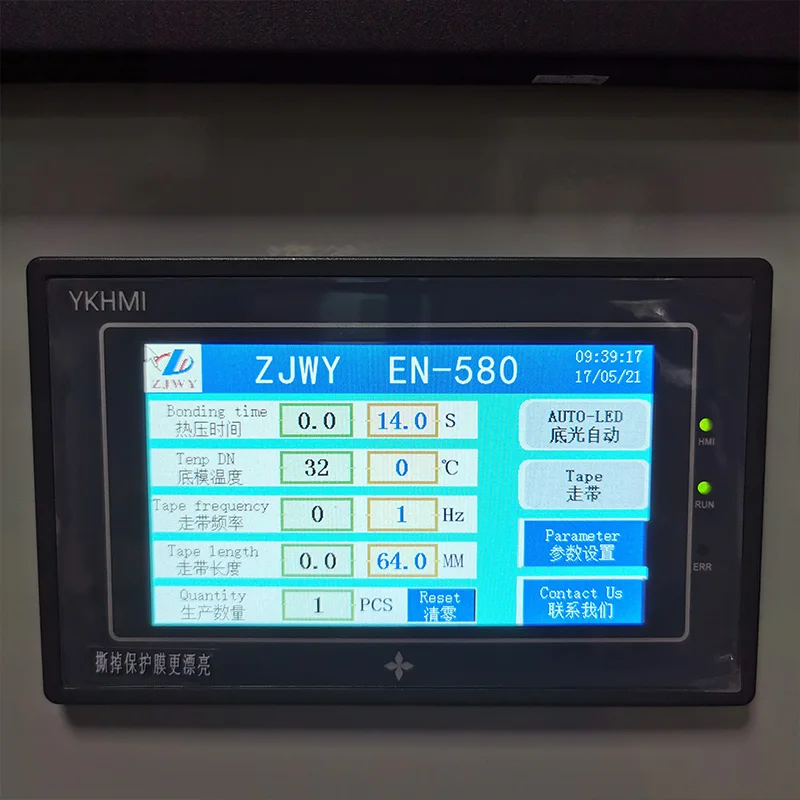

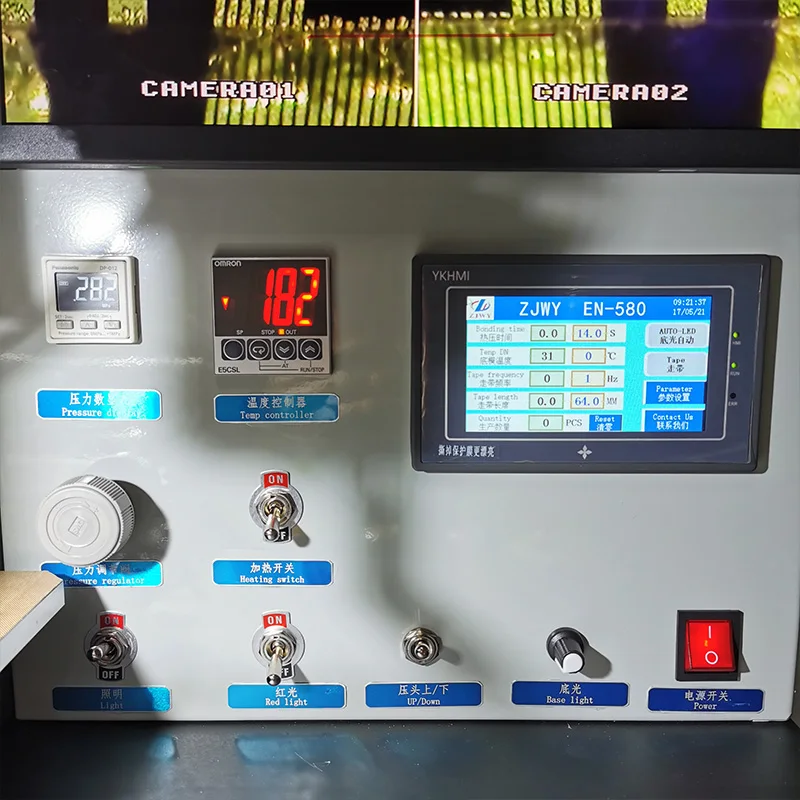

Equipment key
The equipment is equipped with a 7-inch intelligent display screen, which sets the time, temperature and bottom light of the bonding. Other accessories use imported electrical equipment

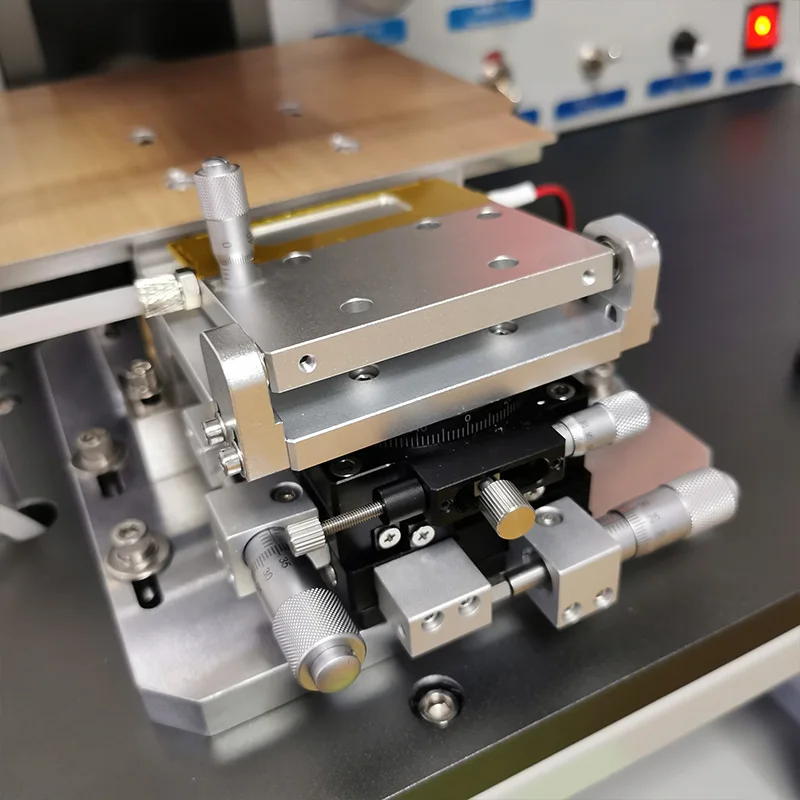

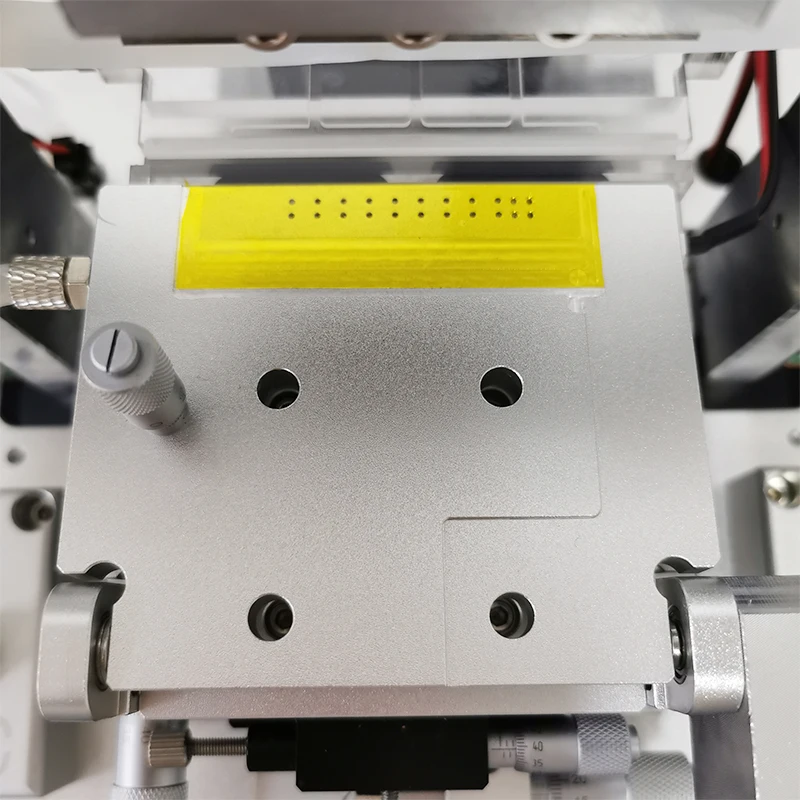

Micrometer adjustment
Both LCD and ribbon cable can be vacuum adsorbed，The adsorbed flat cable can be quickly adjusted up, down, left and right with a micrometer

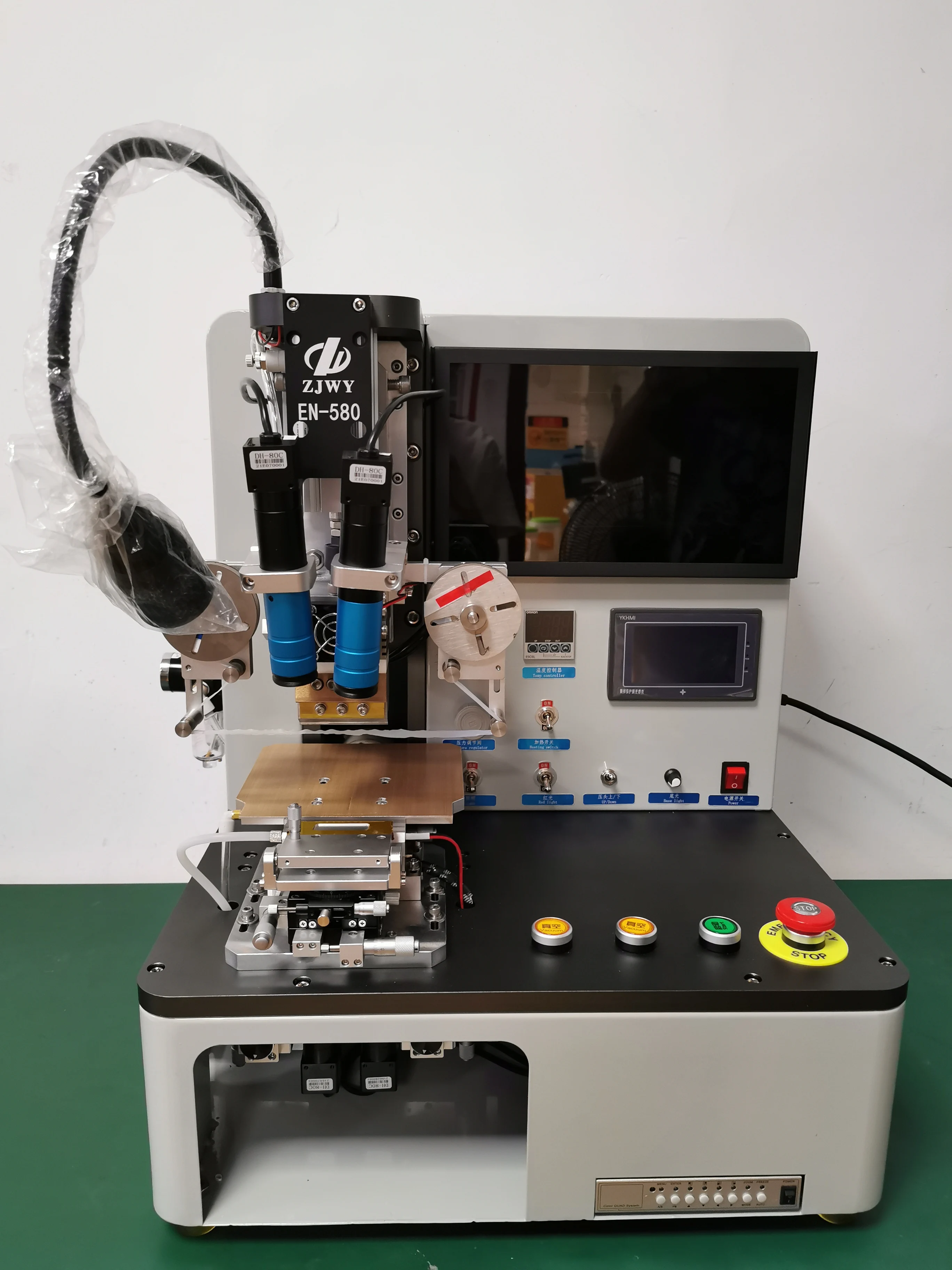

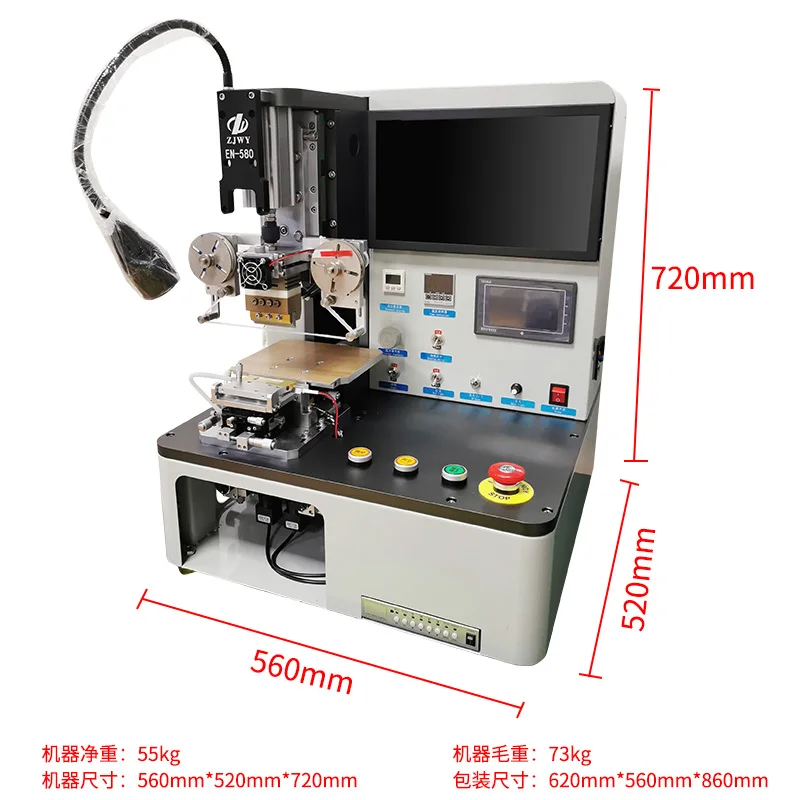

Product site map
