UNI-T UTP1310 DC Power Supply 32V 10A Current Adjustable 4 Digits Display AC 110V/220V Voltage Regulator For Phone Repair
UTP1310 series power supply is an economical switch-type DC regulated power supply with single output. It has a pure output, excellent performance indicators, and can meet diverse testing needs.
Features
●Single output ●Output: 32V, 10A

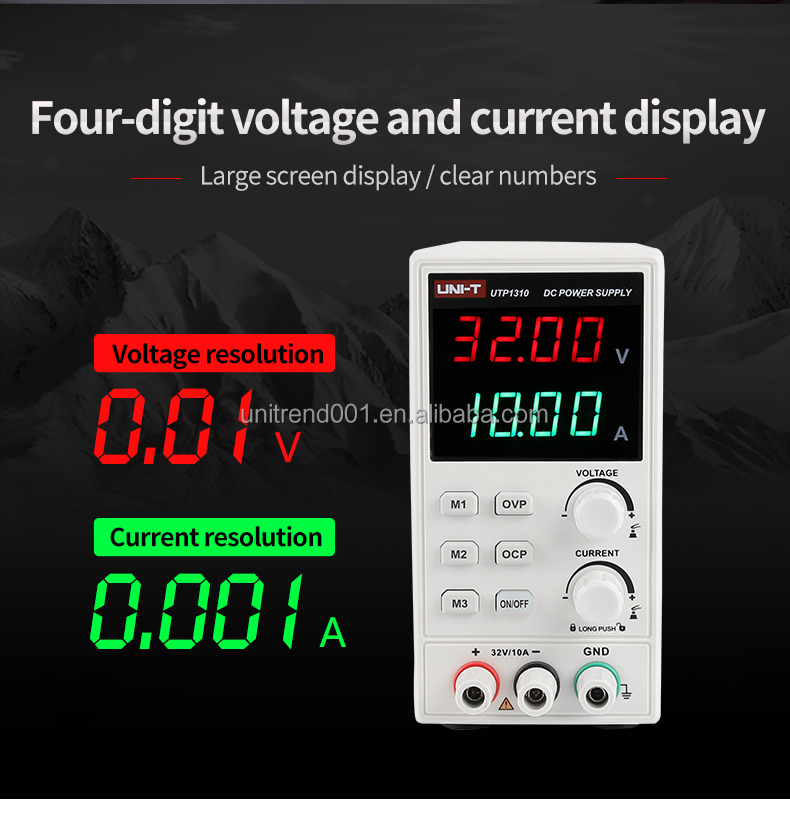

●Resolution: 10mV/1mA

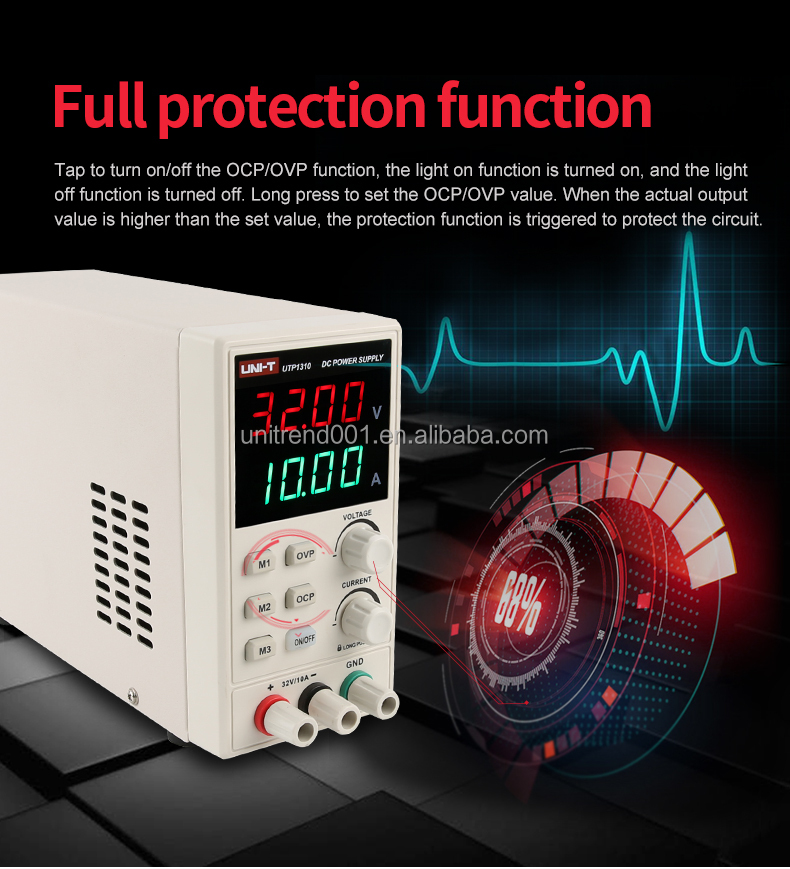

●Over voltage/current protection

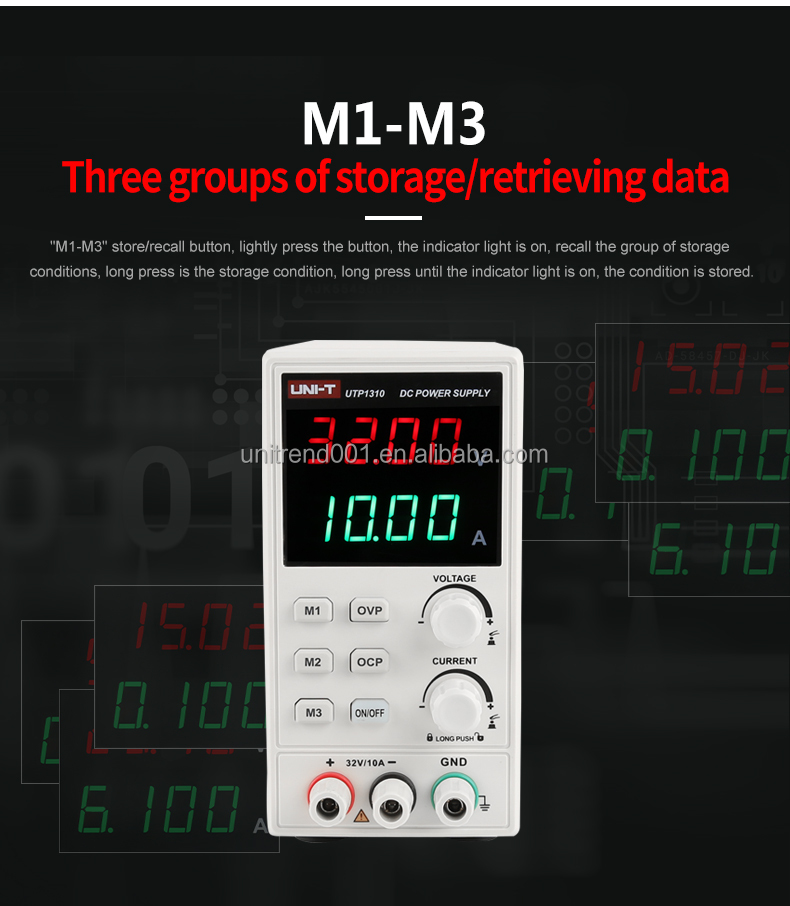

● 3 groups of one-key recall of stored datas
●Over current/voltage protection value settable

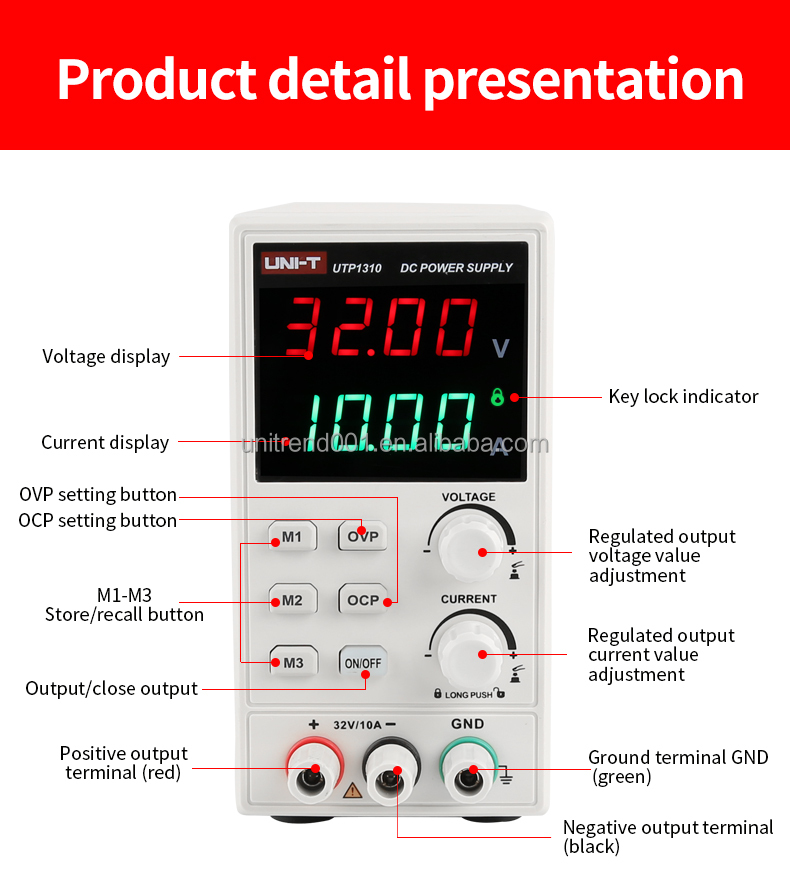

●Independent output switch
●Resolution: 10mV/1mA
●Over voltage/current protection
● 3 groups of one-key recall of stored datas
●Over current/voltage protection value settable
●Independent output switch
Product Description
|

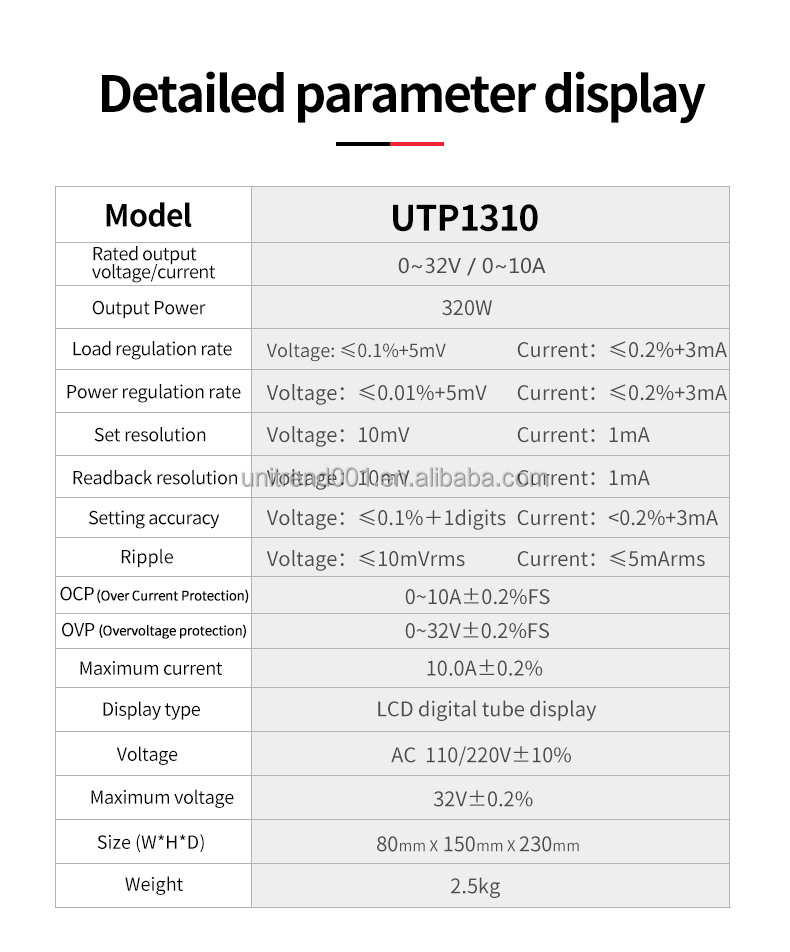

Specifications
|
||
|
Model
|
UTP1310
|
|
|
Output voltage
|
0~32V
|
|
|
Output current
|
0~10A
|
|
|
Output power
|
320W
|
|
|
Load regulation
|
CV＜0.1%+5mV
CC＜0.2%+3mA |
|
|
Power regulation
|
CV＜0.01%+5mV
CC＜0.2%+3mA |
|
|
Output regulate resolution
|
CV: 10mV (typical), CC: 1mA (typical)
|
|
|
MTBF(e):
|
≥2000hrs
|
|
|
Programming accuracy
(25℃±5℃) |
Voltage
|
＜0.1%+1digit
|
|
Current
|
＜0.2%+3mA
|
|
|
Ripple and noise
(20Hz~20MHz) |
Voltage
|
≤10mVrms
|
|
Current
|
≤5mArms
|
|
|
Display mode
|
LED voltage and current dual display
|
|
|
General Characteristics
|
||
|
Power
|

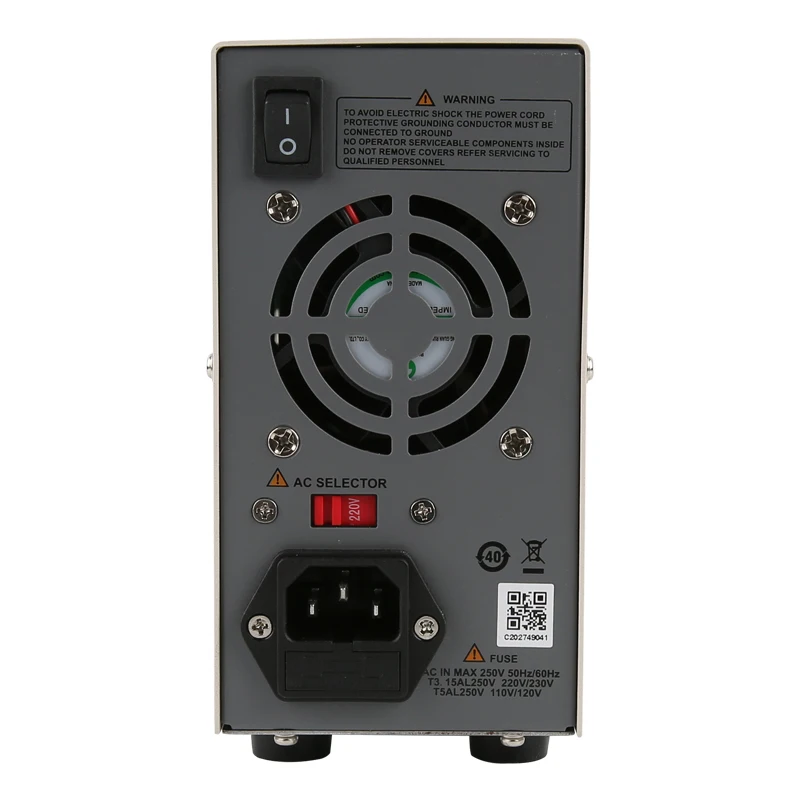

Input voltage: 110V AC/220V AC, 50Hz~60Hz
|
|
|
Display
|
EBTN LCD
|
|
|
Product color
|
White and grey
|
|
|

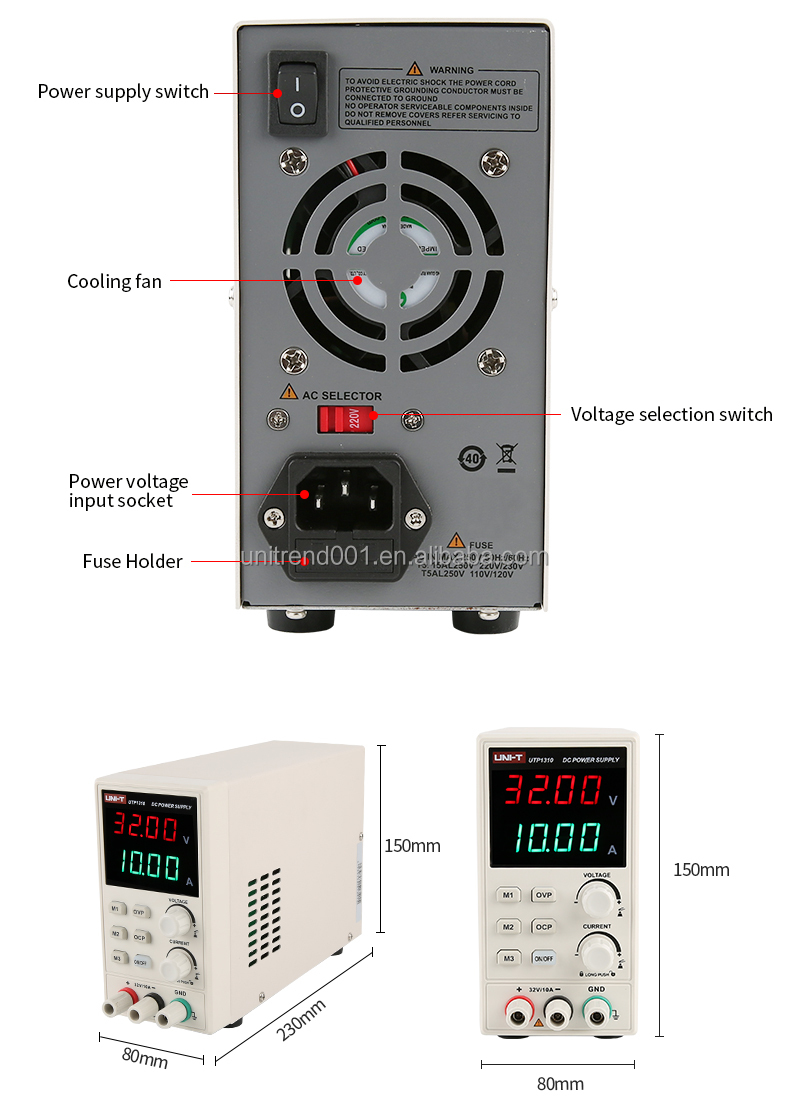

Product size (W×H×D)
|
80mm x 150mm x 230mm
|
|
|
Product net weight
|
2.5kg
|
|
