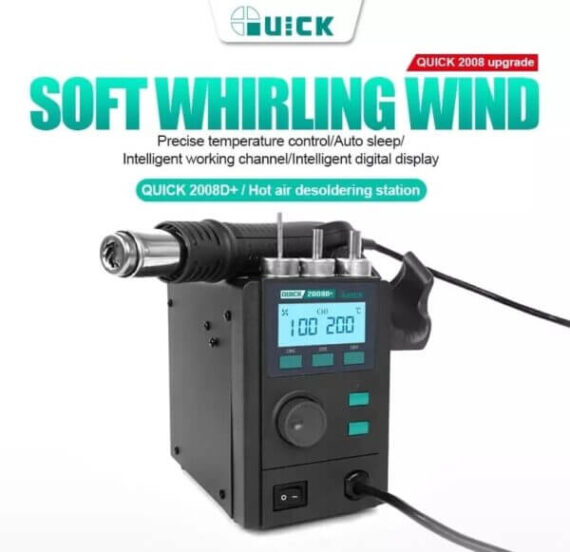

Quick 2008D+ 750W Lead-free Intelligent Digital Display Hot Air Gun
Rotating soft wind double station 2-in-1, precise temperature control/auto sleep/encoder stepless speed regulation/intelligent digital display, QUICK 8586D+ maintenance system
Suitable for the desoldering of a variety of packaged components, suitable for maintenance/R&D electronic engineers

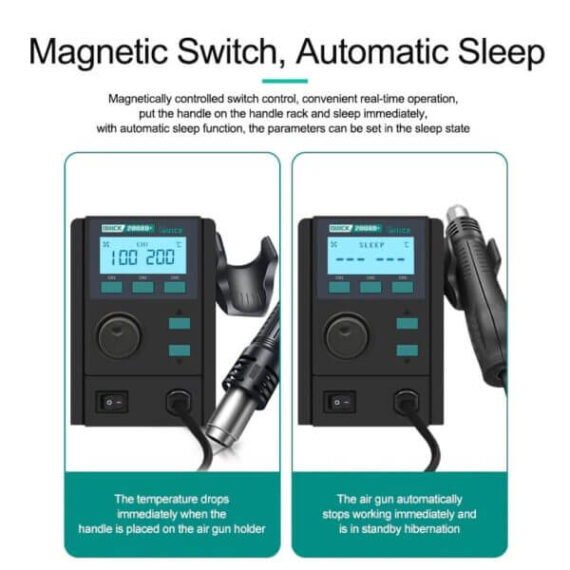

Password protection/auto sleep/precise constant temperature
Digital temperature calibration: Large-screen LCD display, encoder stepless speed regulation, integrating temperature control and air volume control in one
Automatic cold air design: Air gun dormancy, cold air protection, longer heating core life, built-in brushless fan, soft rotating wind, uniform wind force, precise control
Four-wire all-metal heating core: Rapid heating/returning temperature, quicker and better to improve work efficiency
Efficient desoldering: Can be widely used in various chip-level repairs, PCB manufacturing, mobile phone motherboards, etc.

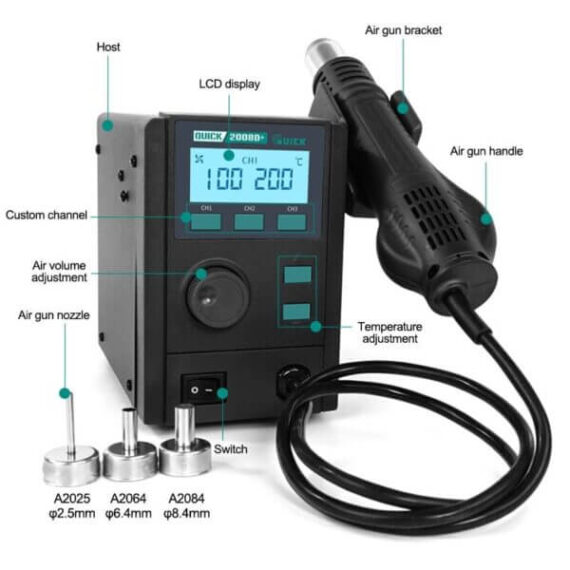

- BRAND: QUICK
Product Name: Maintenance System
Model: QUICK 8586D+
Display type: LCD
Power: 800W (70W soldering station)
Working voltage: 220V AC
Soldering station temperature: 100?~480?
Air gun temperature: 100?~500?
Air volume: 30L/Min (maximum)
Temperature stability: ± 5?(still air, no load)
Ambient temperature: 0~40?
Tip-to-ground potential: <2mV
Tip-to-ground resistance: <2?
Product Dimensions: 98 x 170 x 151 mm
Package size: 330 x 180 x 230 mm
Net weight: about 2.6kg
Gross weight: about 3.0kgPackage included:
- 1 x Soldering Station
- 1 x Hot air gun handle
- 1 x Air gun holder
- 3 x Air nozzle
- 1 x Soldering iron handle
- 1 x Soldering iron tip
- 1 x Soldering iron holder
- 1 x Power cord
- 1 x Wrench
- 1 x Instruction manual
More Detailed Photos:
