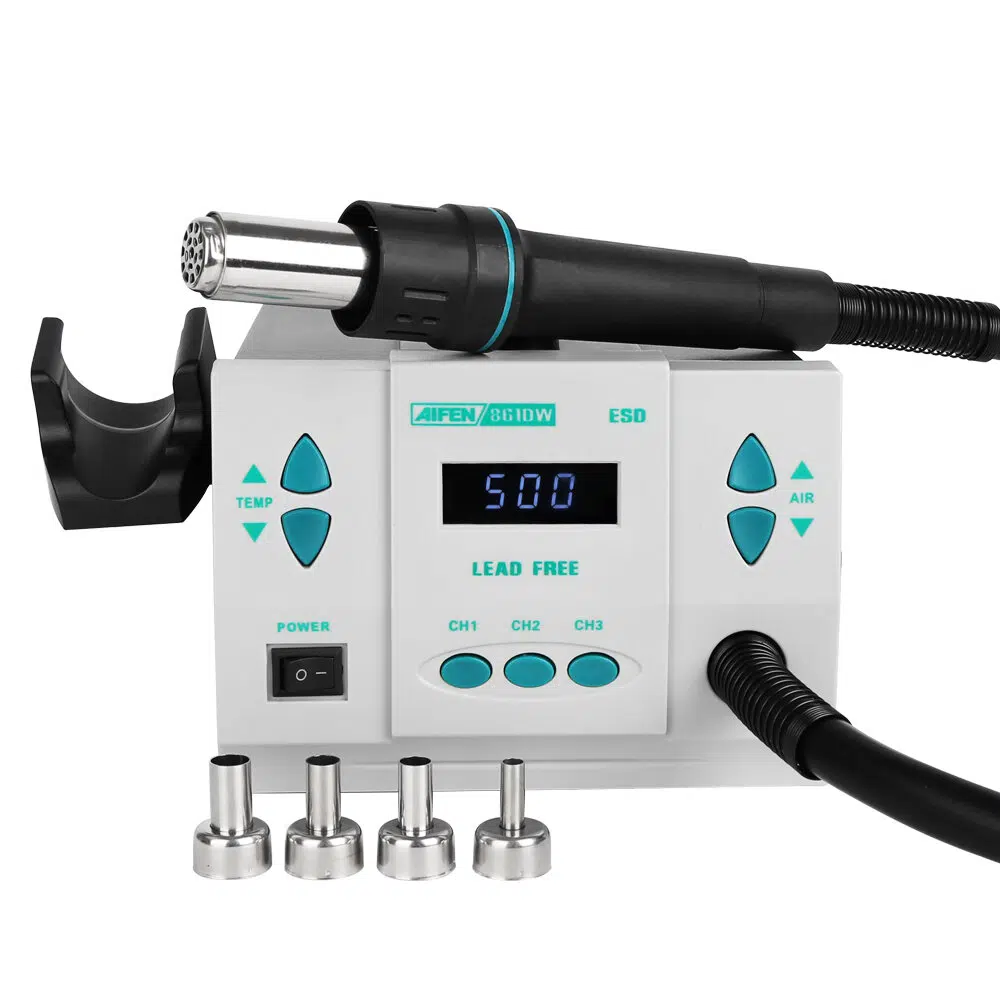

AIFEN 861DW 700W 100C-500C Hot Air Rework Station Motherboard Soldering Repair Tool for Mobile Phone Repair
Features:
1. Using brushless fan, integrated air outlet design, large and soft air volume.
2. Standard configuration with 4 wind nozzles: straight wind 7#, 10#, spiral wind 10#, 12# suitable for different use needs of straight wind and cyclone.
3. Button adjustment, precise adjustment of temperature and air volume.
4. With 3 working channels, you can arbitrarily set and store the air volume and temperature of each channel,
5. Convenient real-time operation, with magnetic control switch control, the handle is placed on the handle frame and immediately enters the dormant state.
6. The parameters can be set in the sleep state.
7. The sensor is closed loop, the microcomputer triggers the temperature control by zero crossing, the power is large and the temperature rises quickly, the temperature adjustment is convenient and accurate and stable, and it is not affected by the air output.
8. The system is equipped with automatic large air volume cooling function to extend the life of the heating element and protect the hot air handle.
9. Celsius/Fahrenheit (°C/F) conversion.
10. Temperature calibration.
11. Buzzer on/off
Specification:
Power: 700W (maximum)
Input voltage:
National standard/European standard: AC220V, 50Hz/60Hz
American Standard: AC110V, 50Hz/60Hz
Temperature range: 100°C-500°C/212°F-932°F
Air volume range: 20-100
Dimensions: 175 x 245 x 175mm
Weight: 3.2kg
Packing size: 305 x 280 x 235mm
Package included:
1 x AIFEN-861DW Hot Air Rework Station
1 x Manual
1 x Certificate
4 x Air nozzle (straight wind 7#/10#/spiral 10#/12#)
