MiPiTester eMMC/UFS ISP B1 Adapter with Type-C Connection Kit

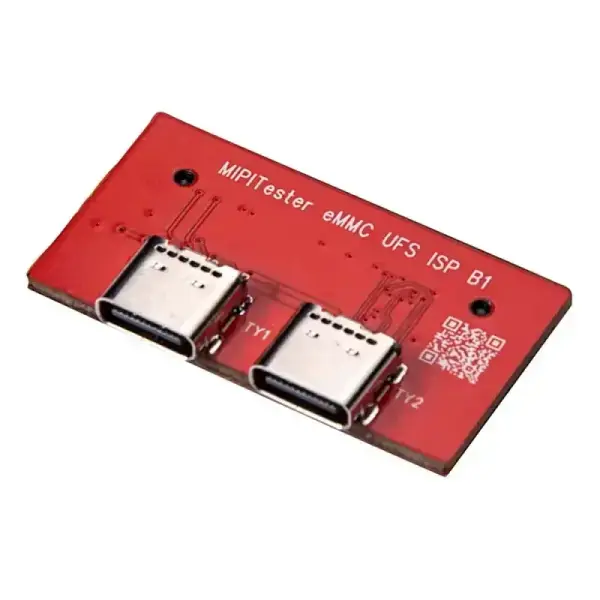

MiPiTester eMMC/UFS ISP B1 Adapter Kit

The complete solution for direct eMMC and UFS memory servicing. Unlock advanced In-System Programming (ISP) capabilities with your MiPi Tester Box.

Unlock Advanced Servicing

The MiPi Tester eMMC / UFS ISP Adapter is an essential tool for professional technicians. It allows you to bypass traditional chip-off methods by creating a direct connection to the memory via ISP pinouts. This is perfect for reading, writing, or repairing data on both eMMC and the latest UFS memory chips efficiently and safely.

Easy and Secure Connection

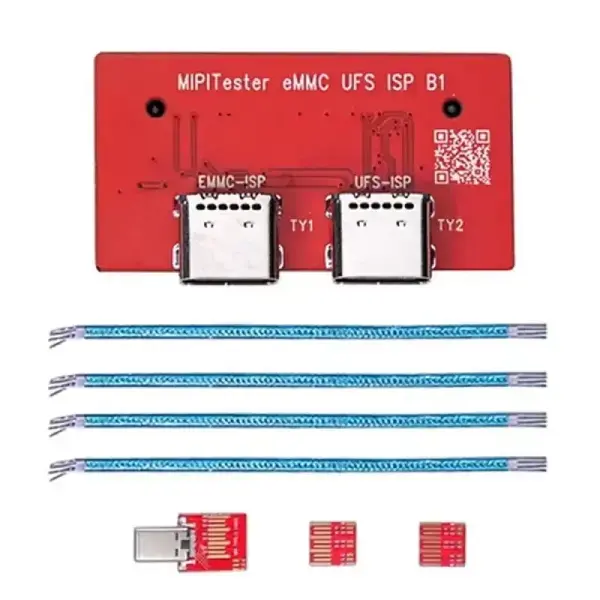

This kit includes all the necessary components for a secure link between your adapter and the MiPi Tester Box. The Type-C connection ensures a reliable and fast data transfer, making your workflow smoother and more dependable.

Important Technical Guidelines

• Power Supply: It is highly recommended to use a regulated power supply. For a successful UFS power-up, press and hold the 'on' button until the current reaches 100-200mA. Using a standard USB power supply is not advised.
• Voltage: Use VCC-3.3V and VCCQ2-1.8V for UFS 2.0, 2.1, and 2.2.

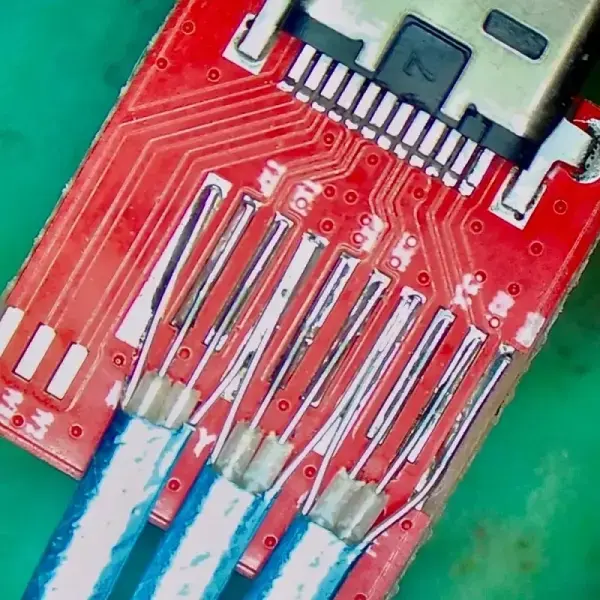

• Wiring (UFS 3.0+): For UFS 3.0, 3.1, and 4.0, all connections (TX, RX, CLK, RST, GND) must be flywired.

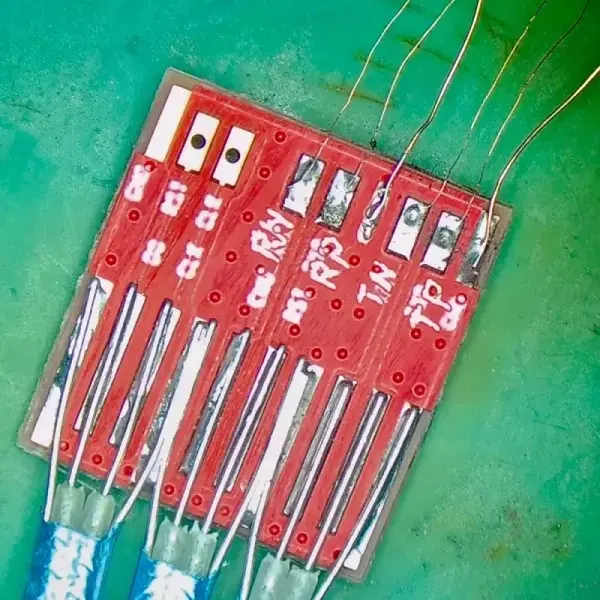

• Signal Integrity: Keep GND, TX, and RX signal wires very short (under 15mm). Ensure the GND connection is as close as possible to TX/RX and all wires are of equal length to maintain signal quality.
• RST Signal: Some CPUs require the RST signal to be wired for a successful connection.
