Question 1

What are these Icfriend Socket PCBs used for?

Accepted Answer

These Icfriend Socket PCBs act as a baseboard or adapter. They are designed to connect specific BGA Sockets (like a UFS 297 or eMMC socket) to your main programmer tool, such as Easy Jtag or Medusa.

Question 2

Which programmer boxes are these UFS adapters compatible with?

Accepted Answer

These UFS adapters are designed for broad compatibility with leading tools in the industry, including Easy Jtag, Medusa, and others that use a compatible connection for UFS and eMMC sockets.

Question 3

What's the difference between a UFS 297 and a UFS 254 socket?

Accepted Answer

The numbers like BGA297 and BGA254 refer to the pin count and layout of the UFS chip. You need the specific Icfriend Socket PCB that matches the BGA type of the chip you are working on to ensure a proper connection.

Question 4

Is there an adapter for eMMC chips too?

Accepted Answer

Yes, the Icfriend EMMC 4in1 Socket PCB is specifically designed to support various eMMC sockets, making it a versatile tool for working on a wide range of older and current devices that use eMMC memory.

Question 5

Why do I need a separate baseboard like this, Icfriend Socket?

Accepted Answer

A separate baseboard is crucial because it provides a stable, reliable electronic connection between the delicate pins of the BGA socket and your main programming tool. This Icfriend Socket ensures clean data transfer without errors.

Join GSM Bazaar WhatsApp Channel

Shopping cart

Hotline:

Icfriend UFS & eMMC Socket PCB – 297, 2-in-1, 5-in-1, 153 F64, 254 & 4-in-1 Models

Choose IC Friend Socket:

Quantity

Icfriend UFS & eMMC Socket PCBs

Connect with Confidence

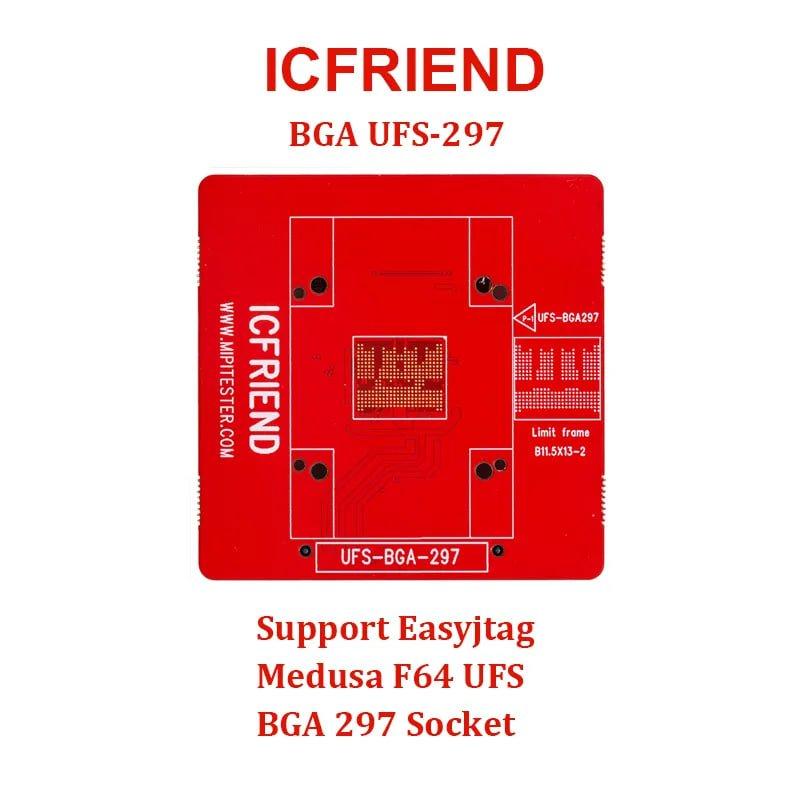

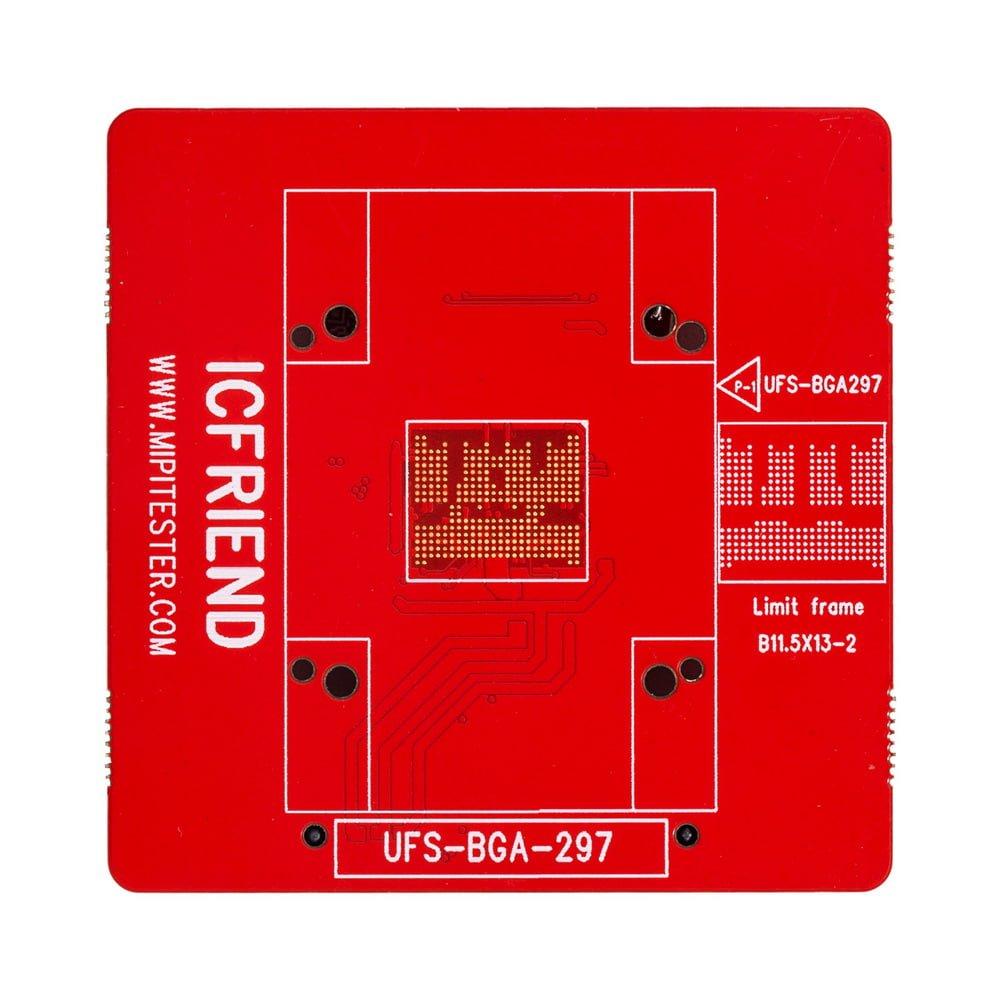

1. Icfriend UFS 297 Socket PCB

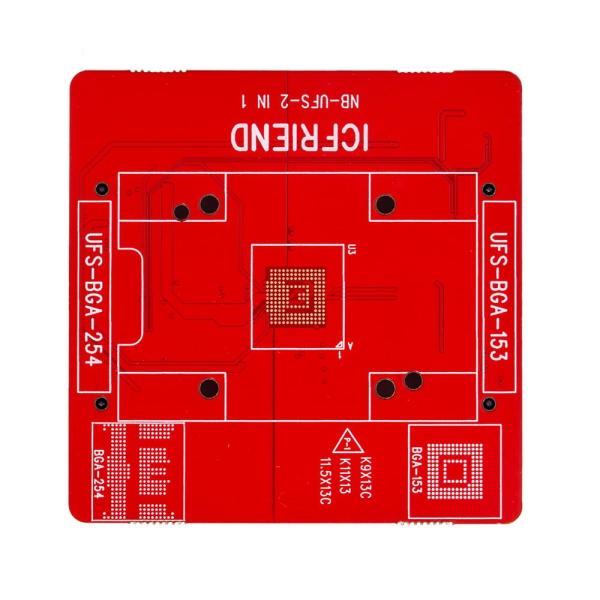

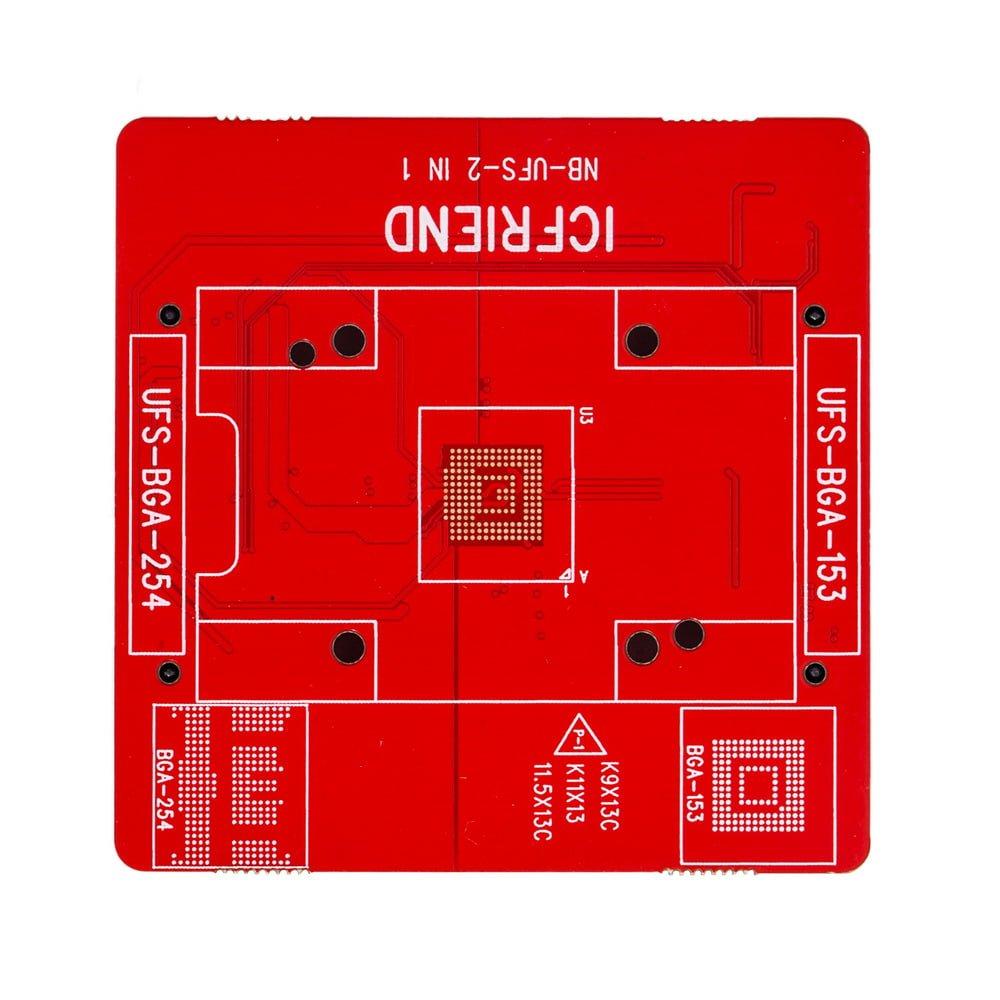

2. Icfriend UFS 2-in-1 Socket PCB

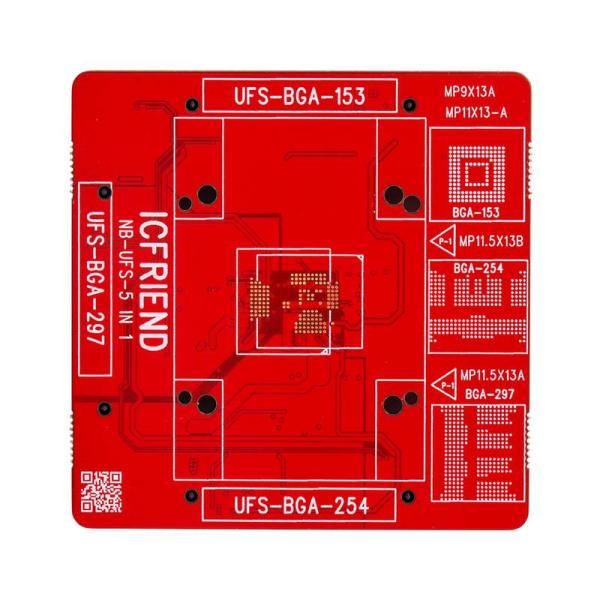

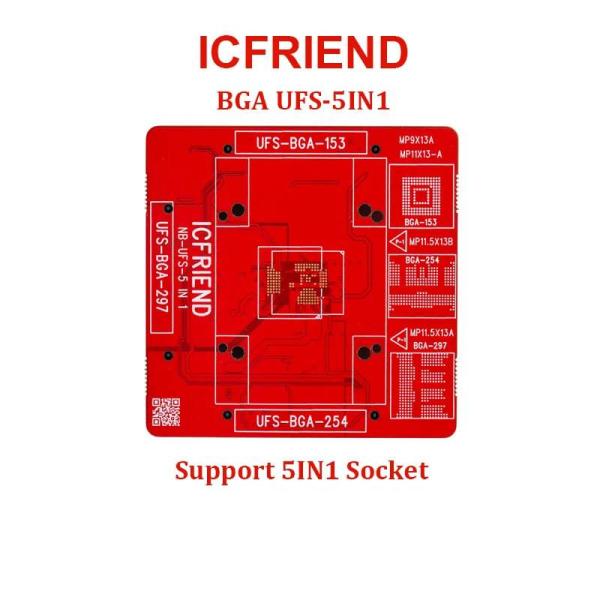

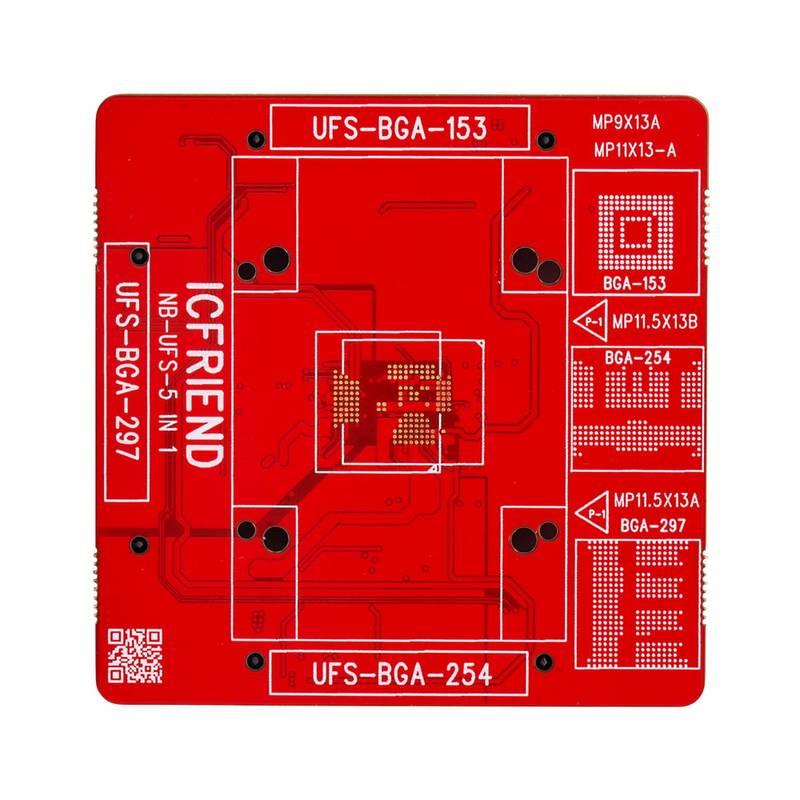

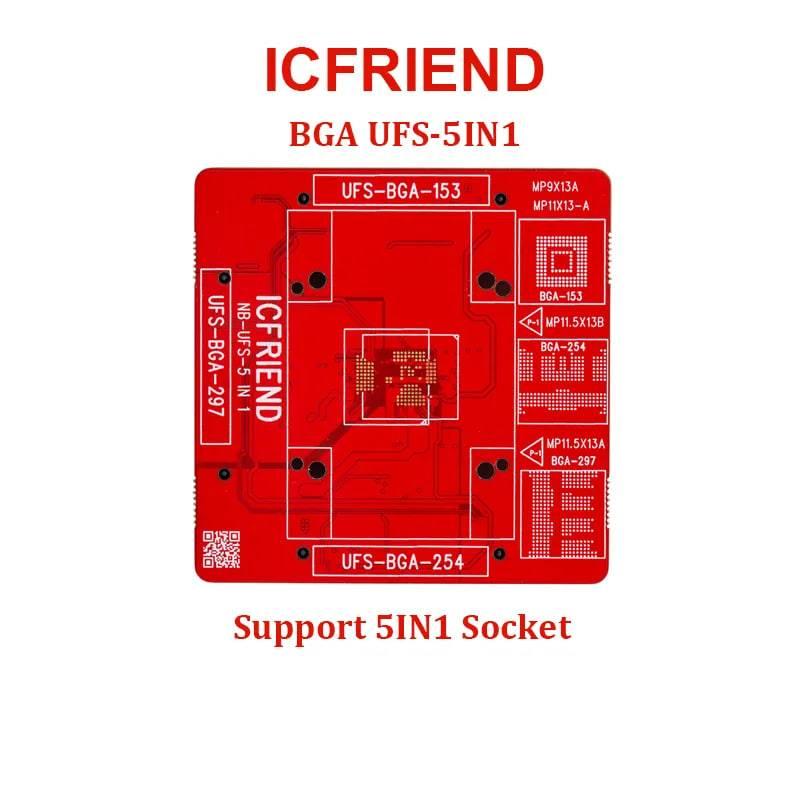

3. Icfriend UFS 5-in-1 Socket PCB

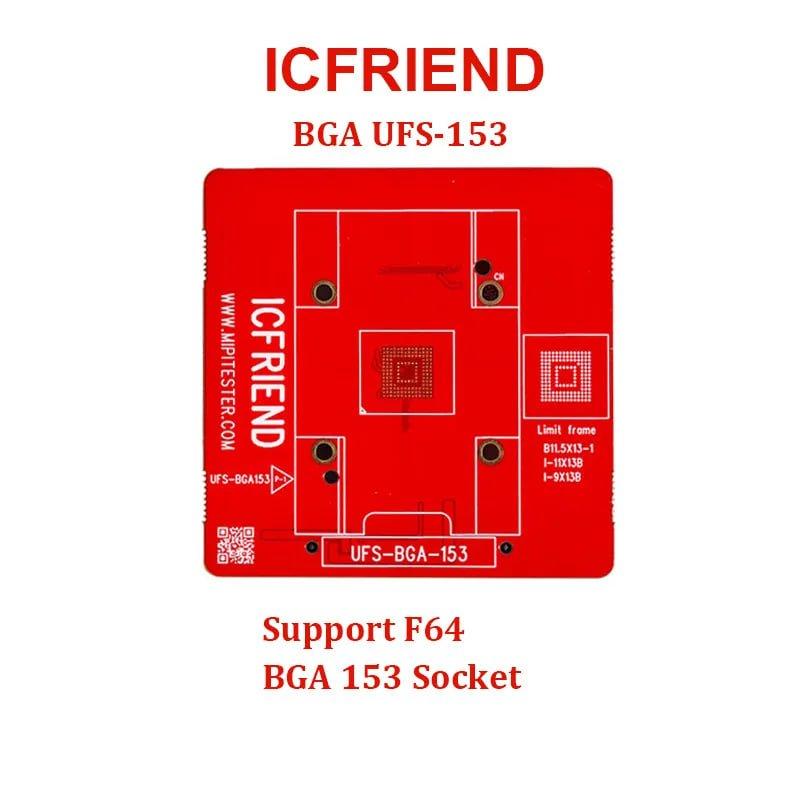

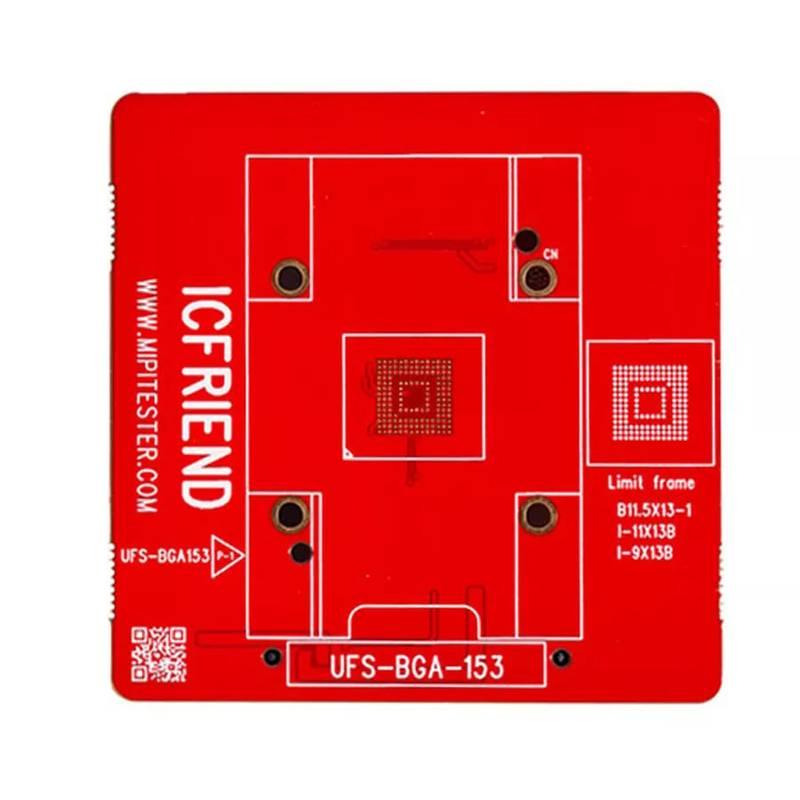

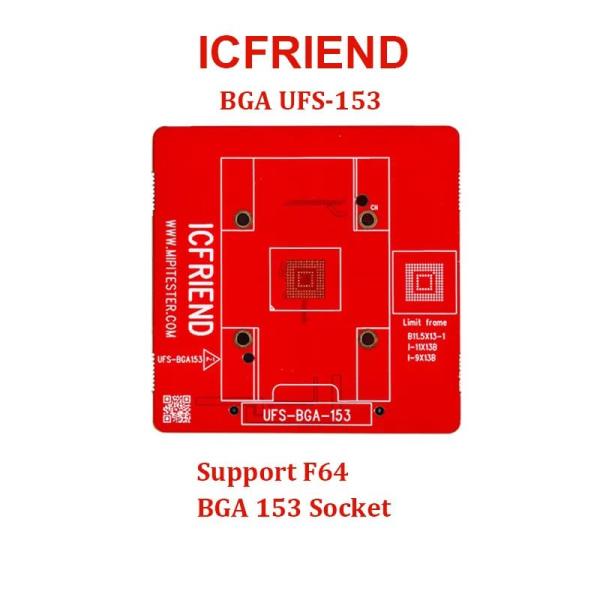

4. Icfriend UFS 153 F64 Socket PCB

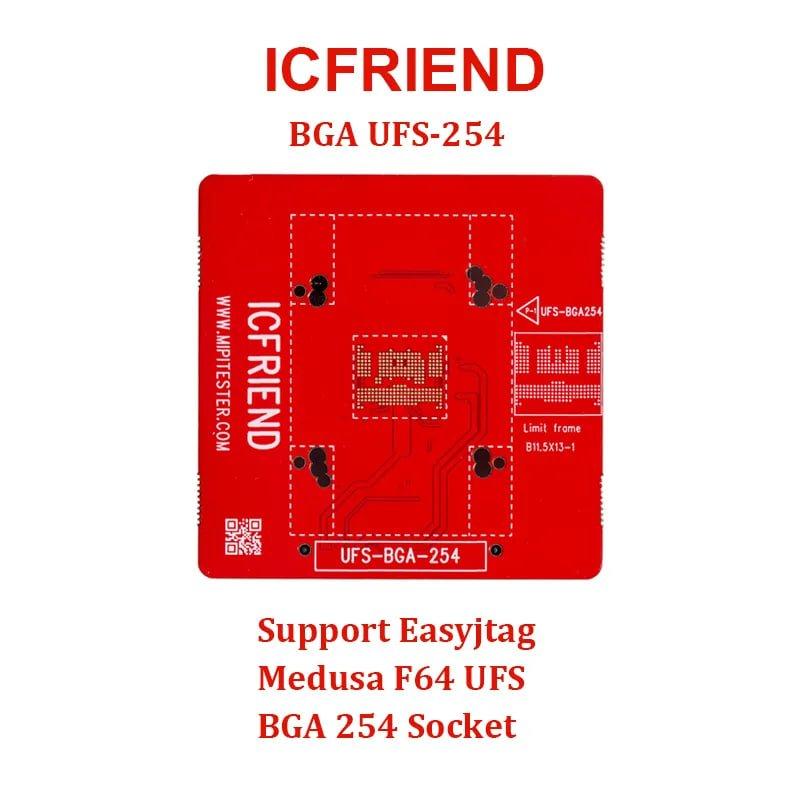

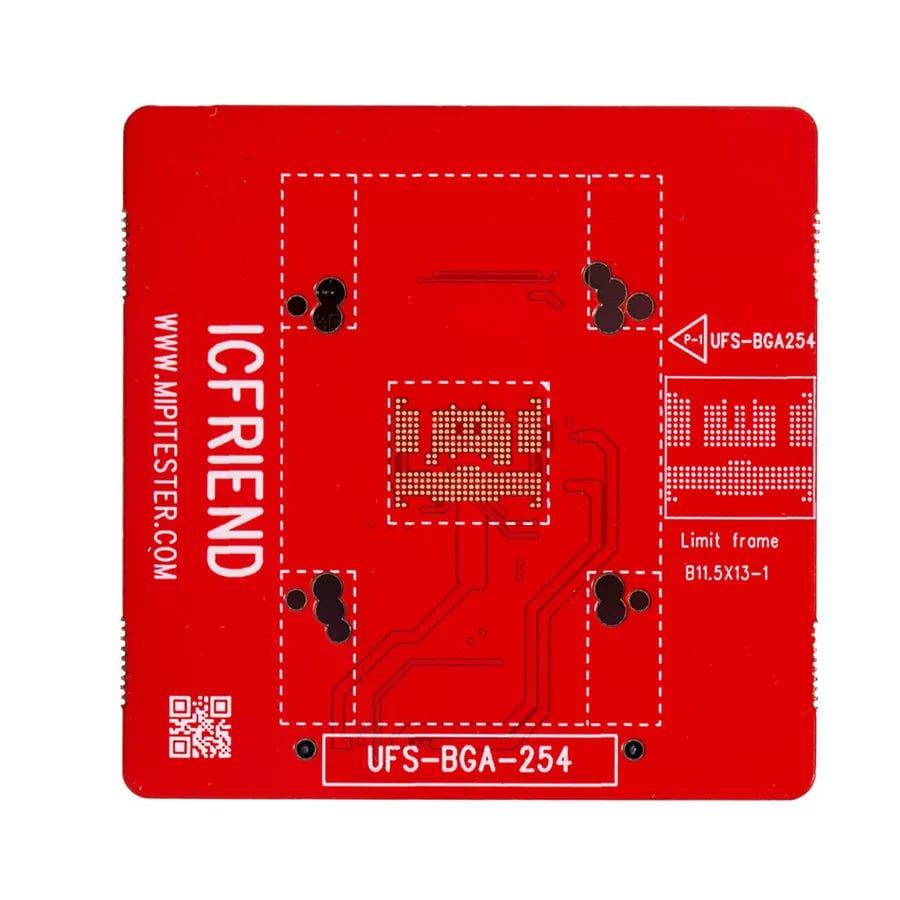

5. Icfriend UFS 254 Socket PCB

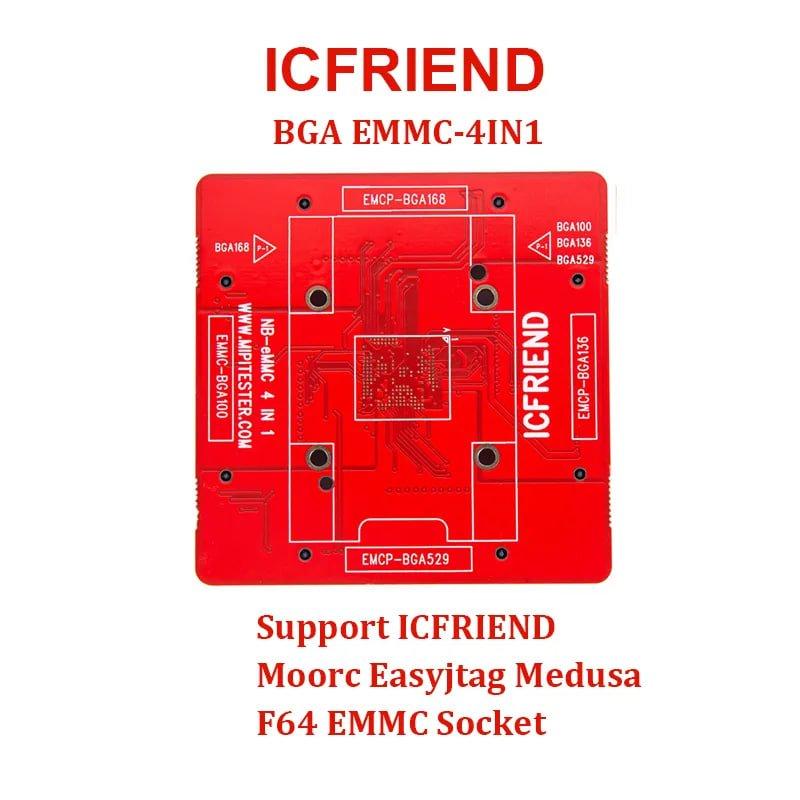

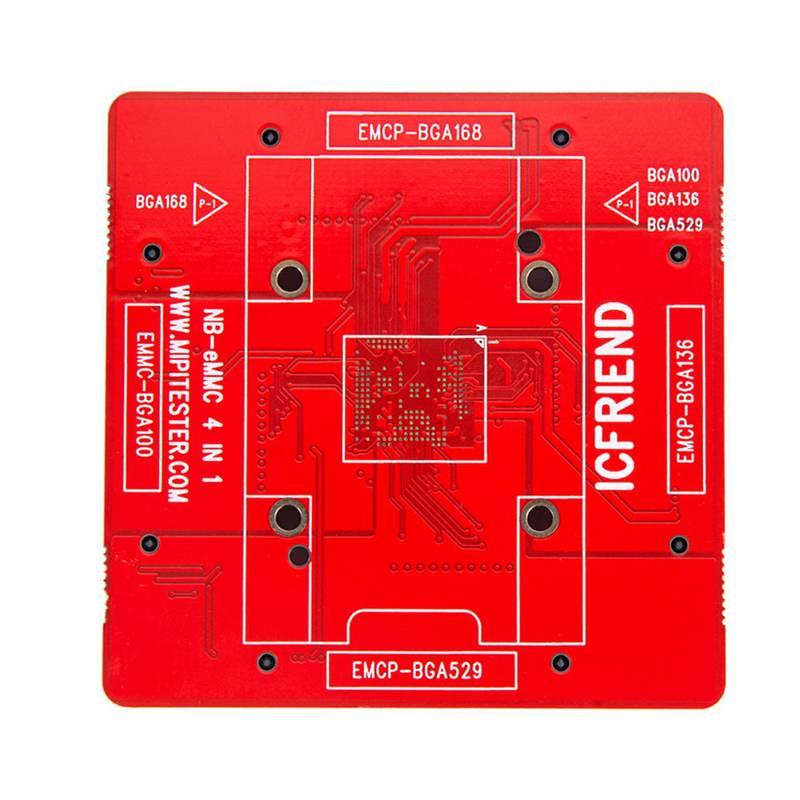

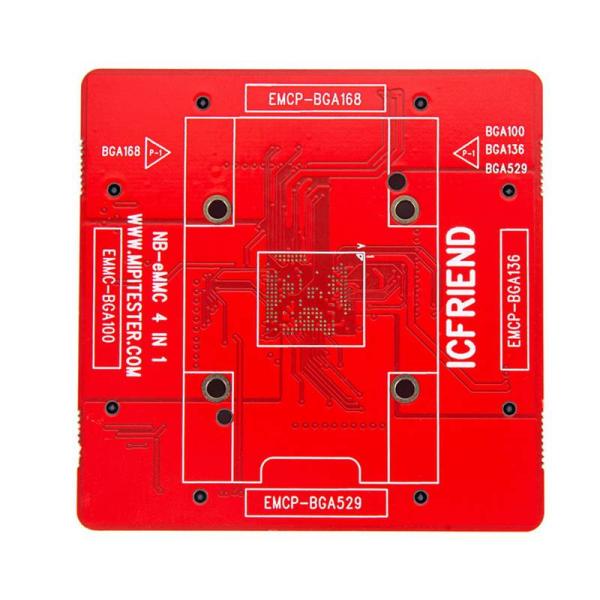

6. Icfriend eMMC 4-in-1 Socket PCB
